OVERVIEW
HDMI Deep Colour is a technology that supports better colour depths, resulting in a high-quality image on your display device. This feature allows for the transmission of HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable. The extender is also capable of supporting Ultra HD and Full HD resolution, as well as digital audio. The receiver can be powered by a power supply or through Power over Ethernet from the transmitter, making it easy to install for various applications. Additionally, the HBT-5 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE) and supports 12V power out for remotely located equipment. The extender is also HDCP compliant, ensuring a clear and uninterrupted display of video sources with HDCP.
The HBT-5 extender also offers RS-232/RS-422 control signals, allowing for control of the source device from the display location. It supports default EDID and EDID learning from the display, which allows for the passing of signals between the source and display. This feature is especially useful for maintaining a high-quality display. Additionally, the extender supports Dolby Digital, DTS-HD, and Dolby TrueHD audio, ensuring a rich and immersive audio experience. With its various features and capabilities, the HBT-5 extender is a reliable and versatile choice for enhancing your HDMI connections.

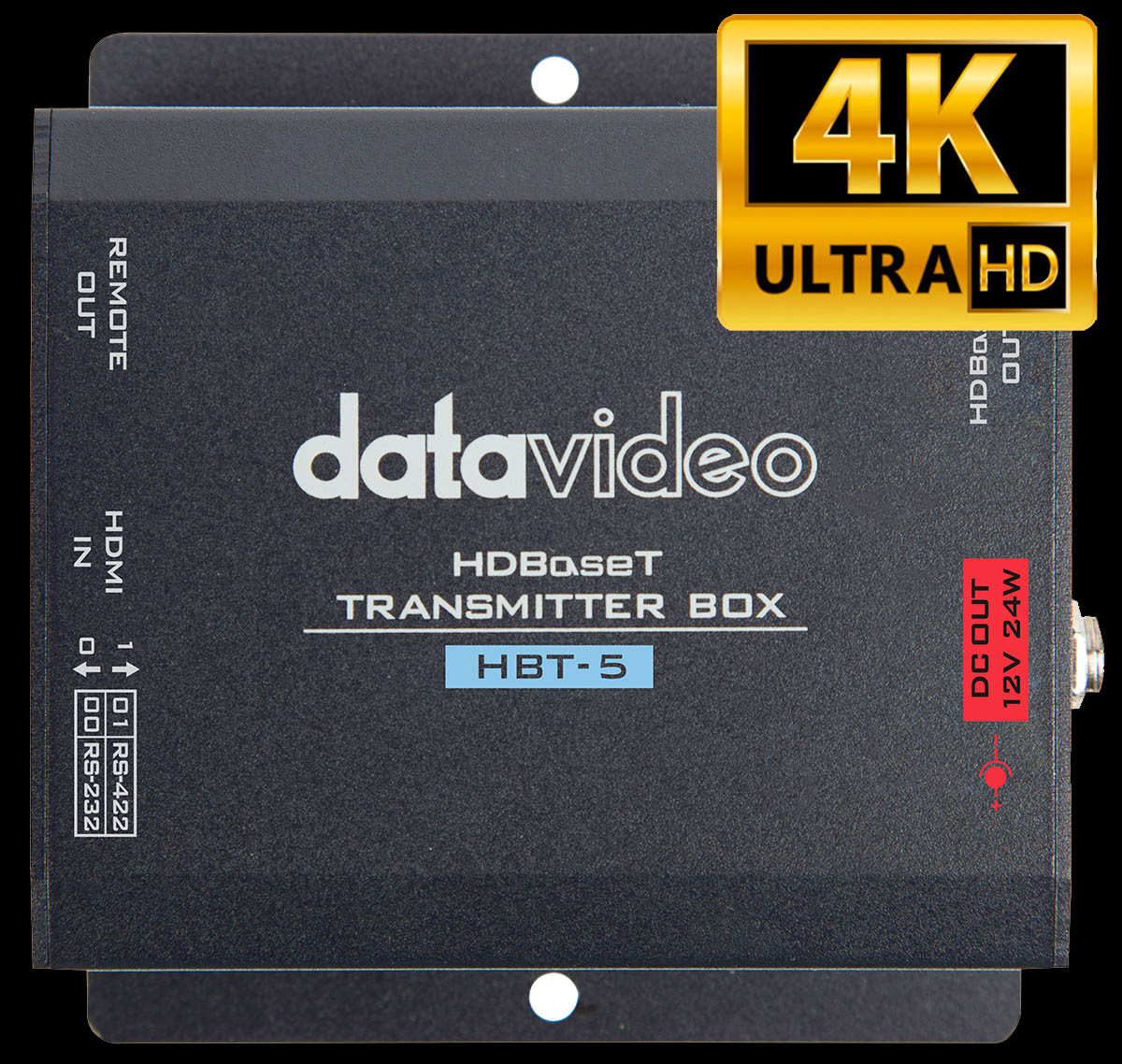

About The Datavideo HBT-5 HDBaseT Transmitter Box
HDMI Deep Colour supports better colour depths
HDMI Deep Colour supports better colour depths. To giving your display device a great image.
Transmits HDMI signals up to 60m at 1080p and 35m at 4K@30 using Cat 6 cable
The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.
Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter
HBT-5 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE), easy to install for various applications. Support 12V power out for remotely located equipment.
HDCP compliant
Can perfectly display the video source with HDCP in high clarity with zero interruption.
Supports control over RS-232/ RS-422
HBT-5 offers RS-232/RS-422 control signals, which allow to control the source device from the display location.
Supports default EDID and EDID learning from the display
EDID pass-through passes signal between the source and display
Dolby TrueHD & DTS Master audio support
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio

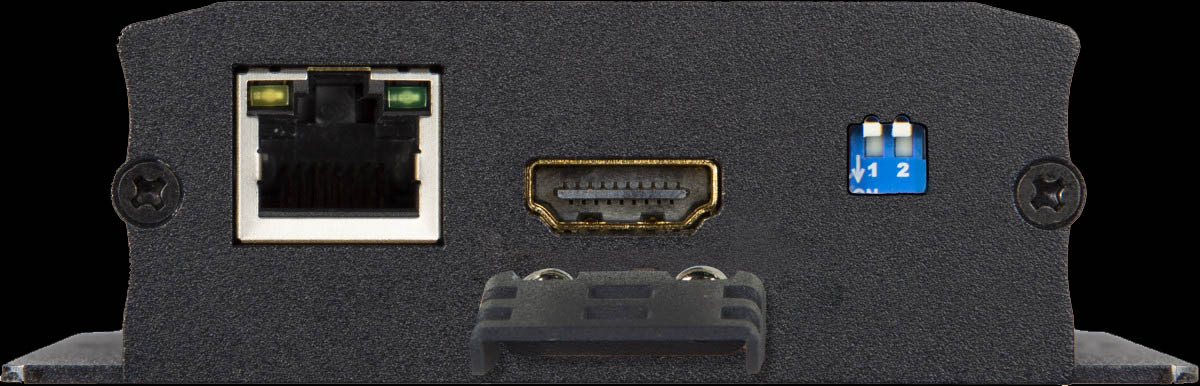

Video/Audio Input HDMI x1
Video/Audio Output HDBaseT RJ-45 x1
Supported Video Format 3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
525i59.94 NTSC, 625i50 PAL
Video Process 4K2K30 4:4:4 8bit
4K2K60 4:2:0 8bit
Video bandwidth Single-link 340MHz [10.2Gbps]
DVIP —
RS-422/ RS-232 YES
Power DC Out: 12V 24W
PoE Output —
HDBaseT Distance 1080p@60 60m (198ft) by CAT6 cable
4K2K@30 35m (114ft) by CAT6 cable
HDMI compliance HDMI Deep Color, full 3D & 4K2K@30
HDCP compliance HDCP 2.2/1.4
Audio support Surround sound [up to 7.1ch) or stereo digital audio
Dimension (LxWxH) 88 x 76 x 30 mm
Weight 151 g
Operating Temp. Range 0~40 °C
