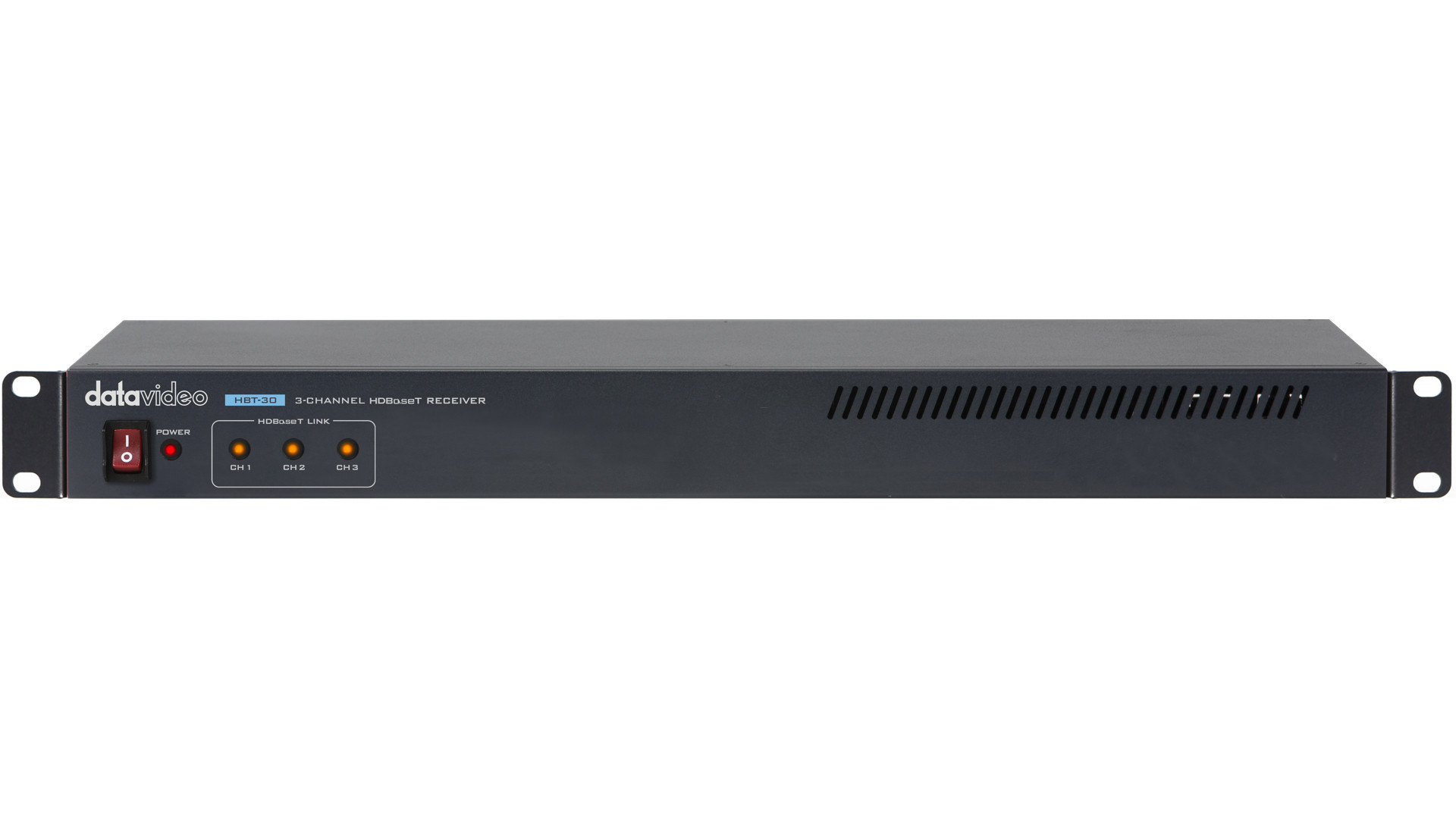

Datavideo HBT-30 3 Channel HDBaseT Receiver




The HBT-30 is a crucial component for any 4K live production setup. It serves as a link to connect up to three devices, providing power, Ultra HD 4K50/60 video signal, and camera control over a distance of up to 100 meters. It also offers HDMI, RS-422, and IP control outputs, making it an essential tool for seamlessly adding HDBaseT technology to your 4K HDMI workflow.

With the HBT-30, you can integrate camera control, switcher, and recorder operations into one system. It transmits HDMI signals up to Ultra HD 4K 50/60, as well as camera control, allowing you to remotely adjust camera parameters such as iris and presets. This makes it the perfect solution for your HDMI workflow, allowing you to control up to three HDBaseT cameras from a distance of 100 meters with a single receiver. No longer do you need individual HDBaseT receiver boxes per camera, saving you time and money.

1 x HBT-30 main unit
1 x AC cord
1 x DC 56V power adaptor

About The Datavideo HBT-30 3 Channel HDBaseT Receiver
An essential link to connect all your equipment for your 4K live production

The HBT-30 supplies power, Ultra HD 4K50/60 video signal, and camera control up to 3 devices up to 100 meters distance. It simultaneously outputs HDMI, RS-422 and IP control signals.

Seamlessly add HDBaseT to your 4K HDMI Workflow

HBT-30 can power the PTZ video cameras via PoE, transmit signals over a single ethernet cable to and from the camera and can be used to remotely control various camera parameters such as iris, presets and etc. Most importantly, it can output HDMI signal to your switcher.

Integrate camera control, switcher and recorder operations

HBT-30 transmits HDMI signal (up to Ultra HD 4K 50/60 ) as well as camera control. With the HBT-30, the system can be integrated as a camera controller, video switcher, and ISO recorder.

Perfect solution for your HDMI workflow

Remote control of camera functions via RS-422 or DVIP with HDMI video transmission (up to Ultra HD 4K 50/60 ) up to 3 cameras simultaneously up to 100 meter.

Control your camera from 100 meter away

Control up to three HDBaseT cameras from a single receiver. With HBT-30, you no longer need individual HDBaseT receiver boxes per camera.

What is HDBaseT ?

HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!

Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.

Video/Audio Input HDBaseT (RJ-45) x 3
Video/Audio Output HDMI 2.0 x 3
Supported Video Format 3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
525i: 59.94 NTSC
625i: 50 PAL
Video Process 4K60 4:4:4, 8bit
4K60 4:2:2 10bit
4K60 4:2:0 10bit
Video bandwidth Single-link 594MHz [18Gbps]
DVIP RJ-45 x1(input)
RS-422/ RS-232
RJ-45 x 3 (RS-232/RS-422)
Power DC IN: DC 56V
PoE Output 65W per channel
HDBaseT Distance 1080p@60 up to 100M by CAT. 6A cable
4K@60 up to 100M by CAT. 6A cable
HDMI compliance HDMI Deep Color & 4K@60
HDCP compliance
HDCP 2.2/1.4 (Bypass)
Audio support Surround Sound [up to 7.1 Channel) or Stereo Digital Audio
Dimension (LxWxH) 440 x 125 x 44.5 mm
Weight 1.8Kg
Operating Temp. Range 0~40 °C
