OVERVIEW

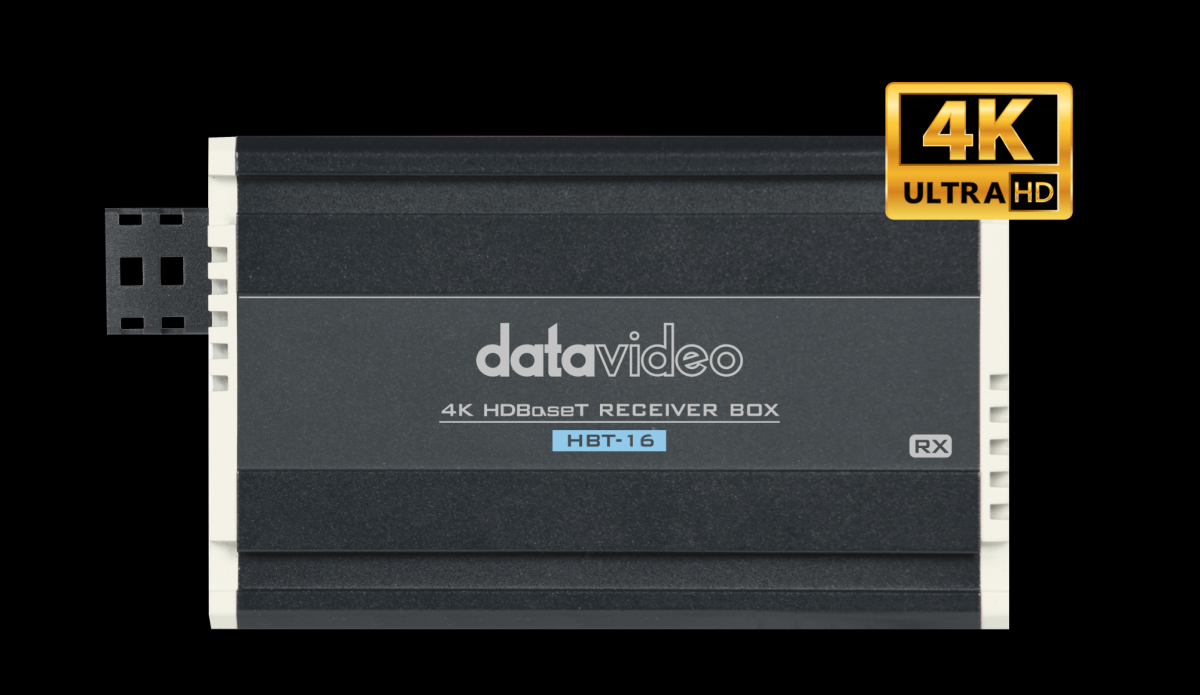

The HBT-16 is an HDBaseT receiver that can receive 4K video, tally, control, and power over a single ethernet cable. It is designed to work with an HDBaseT transmitter and can accept up to 4K 2160P video quality. The receiver uses PoE+ technology to transmit video, audio, DVIP control, RS-422/232 control, and power over a single Cat 7 cable, making it a convenient and efficient solution for long distance 4K transmission. Additionally, the HBT-16 supports HDMI Deep Colour for better color depth and can extend 2160P video transmission up to 100m.
With its sturdy aluminum alloy and heavy-duty design, the HBT-16 is durable and ideal for long hours of operation in normal ventilated environments. It is also HDCP compliant and supports DVIP, RS-422, and RS-232 control protocols. The HBT-16 offers default EDID and EDID learning from the display, as well as Dolby TrueHD and DTS Master audio support. HDBaseT technology is a cost-effective and time-saving solution for video production applications, allowing for the transmission of video, control, tally, and power over a single CAT 6 cable. Datavideo offers a range of HDBaseT PTZ cameras and mobile video switchers to help users take advantage of the benefits of HDBaseT technology.
INCLUDED IN BOX
1 x HBT-16 main unit
1 x AC cord
1 x DC 56V power adaptor
About The Datavideo HBT-16 4K HDBaseT Receiver Box
Long distance 4K HDBaseT receiver that accepts 4K video, tally, control, and power over one ethernet cable
The HBT-16 is an HDBaseT receiver designed to use with an HDBaseT transmitter to receive signal between HDBaseT devices. The receiver accepts up to 4K 2160P image quality video.
Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.
With the 56V power connected to one end of the HBT-16 HDBaseT receiver
The HBT-16 will thus be able to power the transmitting device by PoE plus technology (PoE++).
HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.
HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.
HDMI Deep Colour supports better colour depths
HDMI Deep Colour supports better colour depths. To giving your display device a great image.
Extends 2160P video transmission up to 100m.
Long distance 4K solution. Support up to 4K 50/59.94/60p and receives up to 4K2160P video from the transmitter.
HDCP compliant
Can perfectly display the video source with HDCP in high clarity with zero interruption.
Support DVIP, RS-422, and RS-232 control protocols.
HBT-16 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.
Supports default EDID and EDID learning from the display
EDID pass-through passes signal between the source and display.
Dolby TrueHD & DTS Master audio support
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. HBT-16 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
What is HDBaseT ?
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflows benefits that HDBaseT technology offers.
Video/Audio Input HDBaseT RJ-45 x1
Video/Audio Output HDMI 2.0 x1
Supported Video Format 2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
Video Process 4K2K60 4:4:4 8bits
4K2K60 4:2:0 10bits
Video bandwidth Single-link 600MHz [18Gbps]
DVIP RJ-45 x1(input)
RS-422/ RS-232
RJ-45 x1
Power DC IN: DC 56V
PoE Output 65W
HDBaseT Distance 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
HDMI compliance HDMI 2.0
HDCP compliance HDCP 2.2/1.4 (Bypass)
Audio support Surround sound (up to 7.1ch)
Dimension (LxWxH) 157 x 85 x 46mm
Weight 450 g
Operating Temp. Range 0~40 °C
