OVERVIEW
The HBT-15 is a long distance 4K HDBaseT Transmitter that can carry 4K video, control signals, tally information, and power all over a single ethernet cable. This transmitter is specifically designed to connect transmitting and receiving HDBaseT devices, and it can transmit 4K video up to 100m. It is compatible with Cat 6A or above cables and supports Ultra HD and Full HD resolutions, as well as digital audio. With HDMI Deep Colour support, the HBT-15 can provide better color depths for a high-quality display. It can also be powered by a power supply or through Power-over-Ethernet from the transmitter, making it easy to install for various applications. Additionally, it supports control protocols such as DVIP, RS-422, and RS-232, and has a sturdy aluminum alloy design for durability.
HDBaseT technology offers many benefits for video production applications. With the ability to transmit video, control, tally, and power over a single CAT 6 cable, it can save time and money by eliminating the need for multiple cables. Datavideo offers HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers that take advantage of these benefits. So, whether you need to power and control cameras or transmit video over long distances, HDBaseT is a reliable and efficient solution.
INCLUDED IN BOX
1 x HBT-15 main unit
1 x DC to DC cable

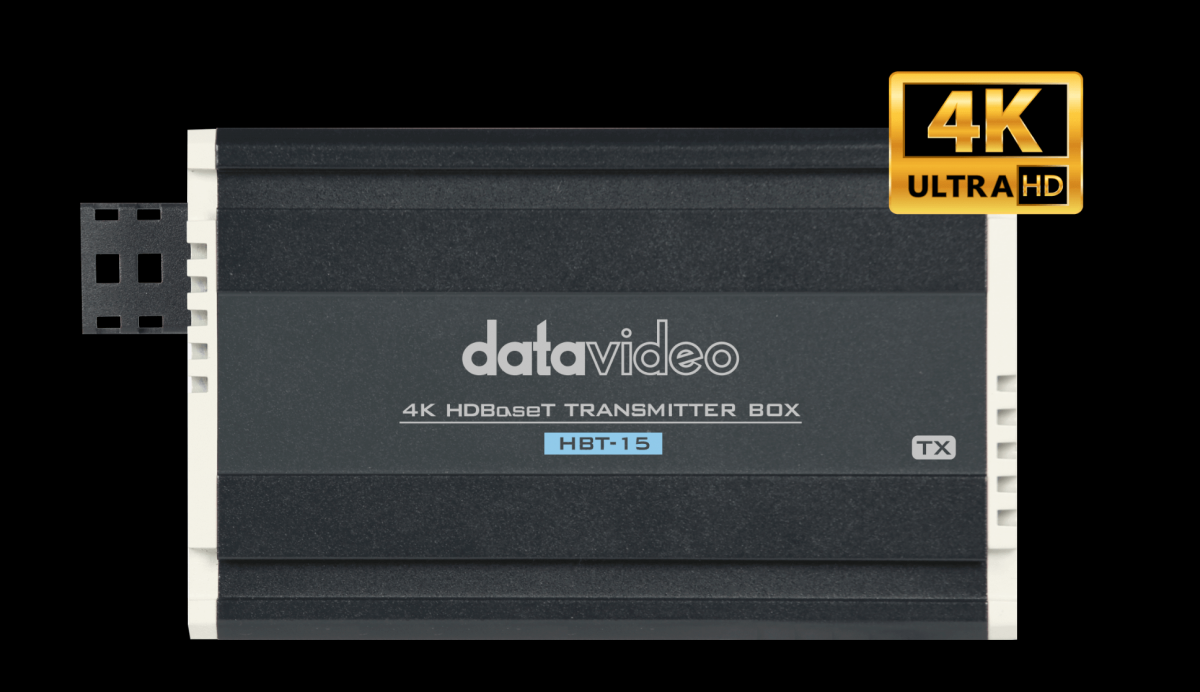

About The Datavideo HBT-15 4K HDBaseT Transmitter Box
Long distance 4K HDBaseT Transmitter that carries 4K video, control, tally, and power over one ethernet cable
The HBT-15 is an HDBaseT Transmitter designed to interface between transmitting and receiving HDBaseT devices. The HBT-15 Transmitter transmits up to 4K 2160P image quality video up to 100m.
Transmits HDMI signals up to 100m at 2160p using Cat 6A or above cable.
The extender supports Ultra HD and Full HD resolution and the accompanying digital audio.
HDMI Deep Colour supports better colour depths
HDMI Deep Colour supports better colour depths. To giving your display device a great image.
Receiver can be powered directly by a power supply, or by Power over Ethernet from the transmitter.
HBT-15 transmitter can be powered by the same single power source using Power-over-Ethernet (PoE+), easy to install for various applications. Support 12V power out for remotely located equipment.
HDCP compliant
Can perfectly display the video source with HDCP in high clarity with zero interruption.
Support DVIP, RS-422, and RS-232 control protocols.
HBT-15 offers DVIP, RS-232/RS-422 control signals, which allow to control the source device from the display location.
Supports default EDID and EDID learning from the display
EDID pass-through passes signal between the source and display
Dolby TrueHD & DTS Master audio support
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. HBT-15 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
What is HDBaseT ?
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflows benefits that HDBaseT technology offers.
Video/Audio Input HDMI 2.0 x1
Video/Audio Output HDBaseT RJ-45 x1
Supported Video Format 2160p: 60/59.94/50/30/29.97/25
1080p: 60/59.94/50/30/29.97/25
1080i: 60/59.94/50
720p: 60/59.94/50
480i: 59.94
576i: 50
Video Process 4K2K60 4:4:4 8bits
4K2K60 4:2:0 10bits
Video bandwidth Single-link 600MHz [18Gbps]
DVIP RJ-45 x1(output)
RS-422/ RS-232
RJ-45 x1
Power DC Out: 12V 30W
PoE Output —
HDBaseT Distance 2160p60/59.94/50 Up to 100m by CAT. 6A Cable (Resolution downward supported)
HDMI compliance HDMI 2.0
HDCP compliance HDCP 2.2/1.4 (Bypass)
Audio support Surround sound (up to 7.1ch)
Dimension (LxWxH) 157 x 85 x 46mm
Weight 474 g
Operating Temp. Range 0~40 °C
