OVERVIEW
The HBT-12 is an HDBaseT receiver that supports up to 4K image quality video and can be powered by PoE plus technology. This means that a single Ethernet cable can be used to establish an HDBaseT connection between the transmitter and receiver, allowing for the transmission of video, audio, control commands, and power. The HBT-12 is designed with a rugged metal housing, making it durable and suitable for use in various conditions. It also has low heat dissipation, making it ideal for long hours of operation.
HDBaseT technology is used for powering and controlling cameras and transmitting video signals over long distances in video production applications. It allows for the transmission of video, control, tally, and power over a single CAT 6 cable, eliminating the need for multiple cables. Datavideo offers a range of HDBaseT PTZ cameras and mobile video switchers, providing users with the benefits of HDBaseT technology in their workflows.
INCLUDED IN BOX
1 x HBT-12 main uni
1 x AC cord
1 x DC 56V power adaptor

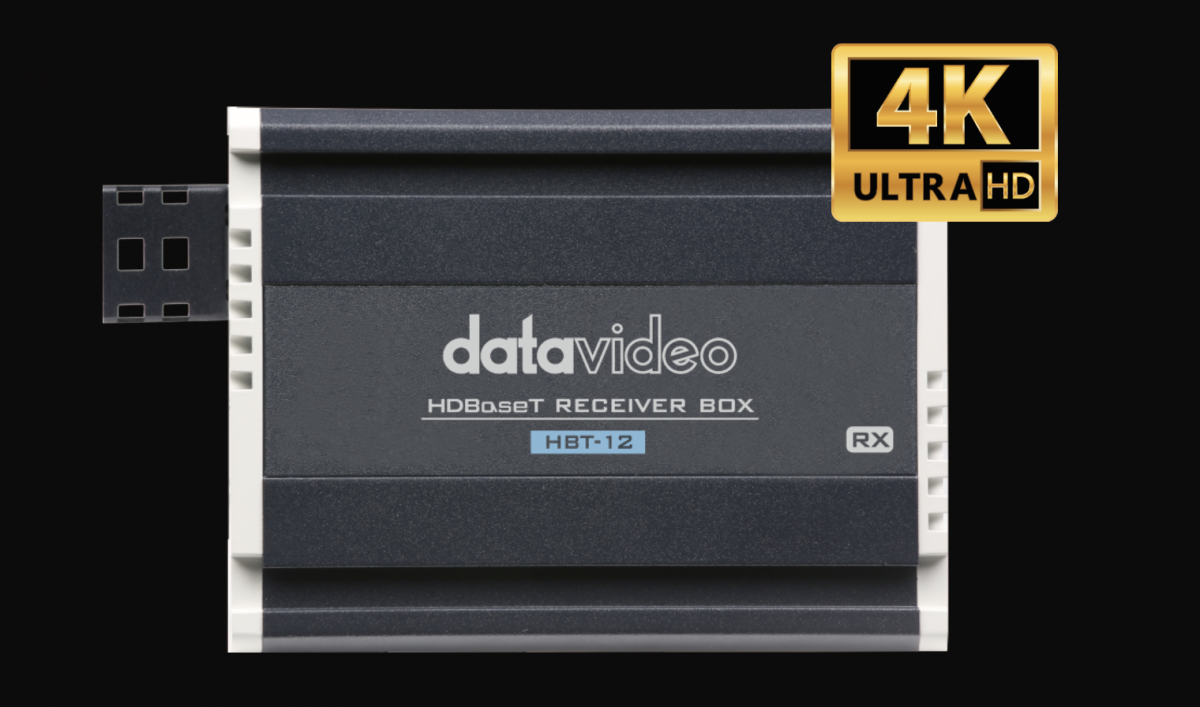

About The Datavideo HBT-12 HDBaseT Receiver Box
Long distance 4K solution and carry everything in one ethernet cable
The HBT-12 is an HDBaseT receiver designed to interface between transmitting and receiving devices. The receiver accepts up to 4K image quality video.
With the 56V power connected to one end of the HBT-12 HDBaseT receiver
The HBT-12 will thus be able to power the transmitting device by PoE plus technology (PoE++).
HDBaseT connection between the transmitter and the receiver can be established using a single Ethernet cable.
HDMI video, DVIP control commands and power (PoE++) can be transmitted between the transmitter and the receiver over just one cable.
Transmits video, audio, DVIP control, RS-422/232 control and PoE+ over a single Cat 7 cable.
Extends video transmission to 120m.
Support DVIP, RS-422, and RS-232 control protocols.
Long distance 4K solution
Support up to 4K 25/30p and receives up to 4Kx2K video from the transmitter.
Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. HBT-12 has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
What is HDBaseT ?
HDBaseT can be used to power and control cameras, as well as transmit video signals over long distances for many video production applications. In this episode of Tech Tip Tuesdays, we explain how you can save time and money by using HDBaseT. HDBaseT allows you to transmit video, control, tally, and power over single CAT 6 cable. This means you no longer need to run multiple cables for video, control, and power for your cameras!
Datavideo offers several HDBaseT PTZ Cameras and HDBaseT Mobile Video Switchers to help you take advantage of the many workflow benefits that HDBaseT technology offers.
Video/Audio Input HDBaseT RJ-45 x1
Video/Audio Output HDMI x1
Supported Video Format 3840x2160p: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
Video Process —
Video bandwidth —
DVIP RJ-45 x1(input)
RS-422/ RS-232
RJ-45 x1(input)
Power DC IN: DC 56V
PoE Output 65W
HDBaseT Distance 1080p@60 100m by CAT.7 cable
4K2K@30 70m by CAT.7 cable
HDMI compliance —
HDCP compliance —
Audio support —
Dimension (LxWxH) 132 x 85 x 45 mm
Weight 400 g
Operating Temp. Range 0~40 °C
