OVERVIEW
The DAC-9P 4K Converter is a high-quality converter that allows for easy connection between 4K HDMI signal devices and professional 12G-SDI video equipment. With HDMI input to SDI output and HDMI loop output, this converter is suitable for a variety of broadcast and professional AV applications. It supports resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160) and is designed for plug and play use, eliminating the need for a laptop for adjustments.
In addition to its conversion capabilities, the DAC-9P 4K also supports re-clocking for improved output signal quality and has a HDMI loop thru for sending signals to other devices. It even has the ability to embed audio from either 2-channel RCA analog audio or the HDMI input. With its sturdy aluminium design and low heat dissipation, the DAC-9P 4K is a reliable choice for long hour operations in normal ventilated environments.
INCLUDED IN BOX
1 x DAC-9P 4K
1 x AD Switch DC 12V
About The Datavideo DAC-9P 4K Converter
Broadcast Quality 4K HDMI to 12G-SDI Converter
The DAC-9P 4K Converter converts 4K HDMI in resolutions up to 4K50/60 to 12G-SDI, it is easy to connect the 4K HDMI signal devices and professional 12G-SDI video equipment.
Featuring HDMI input to SDI output, and with HDMI loop output, audio is selectable from the HDMI input or RCA analog input.
The DAC-9P 4K Converter is useful for a variety of broadcast and professional AV applications.
Supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
The DAC-9P 4K is broadcast quality converter, and it supports up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160).
The DAC-9P 4K is also very easy to use. It is a plug and play converter, so there is no need to use a laptop for adjusting any settings.

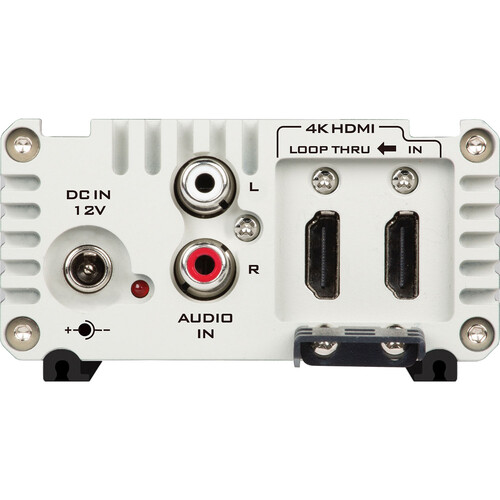

4K HDMI 2.0 input and Loop-Thru Output
In addition to the converted 12G-SDI output, there is a HDMI loop thru for sending a signal to other devices in your workflow.
Supports Re-Clocking
DAC-9P 4K will regenerate the video signal, and provide less jitter to improve output signal quality. DAC-9P 4K allows for a long distance transmission.
Not just a Video Converter, but also an Audio Embedder
DAC-9P 4K provides a video converter from HDMI to SDI, and it also provides you an additional audio embedded selectable from 2-channel RCA analog audio or input from HDMI video to your live production.
Plug-and-Play
No Dip switch or laptop adjustment needed, Just plug and play you will receive the perfect SDI video signal for your video production.

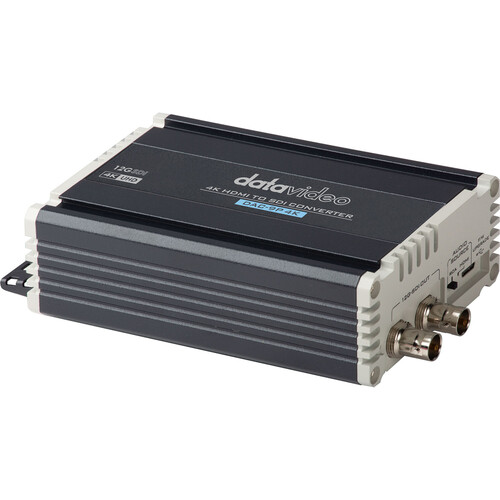

Aluminium Appearance Design, Rugged and Durable
Super sturdy and durable. The DAC series products have a rugged metal housing for use in the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Model Number DAC-9P 4K
Conversion 4K HDMI to 12G/3G/HD/SD-SDI
Video Inputs 1x HDMI 2.0 Type A
Loop Through 1 x HDMI 2.0 Type A
Video Outputs 2 x 12G-SDI (3G-SDI Level A)
Audio Inputs 2 x RCA (Unbalanced Audio L/R)
HDMI embedded audio, 24-bit, 8-channel
Audio Outputs SDI embedded audio, 24-bit, 8-channel
Audio Format Selection N/A
Audio Gain N/A
Supported Video Input Formats 4096x2160p: 60/50/30/25/24
3840x2160p: 60/50/30/25/24
1080p: 60/50/30/25/24
1080i: 60/50, 720p: 60/50
Output Resolutions Automatically matches the SD, HD and 4K HDMI video input
Equalizer N/A
Reclock Yes
SDI Cable Drive Yes
Updates and Configuration USB Type C
Dimension (LxWxH) 136.5 x 85 x 45 mm
Weight 0.39 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 9.4W
