OVERVIEW
The DAC-8PA is a versatile device that allows you to convert an SDI signal to HDMI with the added feature of audio de-embedding. This means that you can easily connect your SDI source (up to 1080p60) to an HDMI display or device while also extracting the audio to a stereo RCA output. This is a great solution for those who need to convert and distribute SDI signals with audio.
In addition to its audio capabilities, the DAC-8PA also supports 1080p 50/60 and has automatic input signal and colour depth detection with support for Deep Colour. It also offers simultaneous SDI loop-through with HDMI output, making it easy to connect multiple devices. Its sturdy and durable aluminium alloy design makes it ideal for use in rough conditions, and its low heat dissipation ensures it can operate for long hours in a normal ventilated environment. The DAC series is a reliable and efficient choice for converting SDI to HDMI.
INCLUDED IN BOX
1 x DAC-8PA produto
1 x AD Switch DC 12V

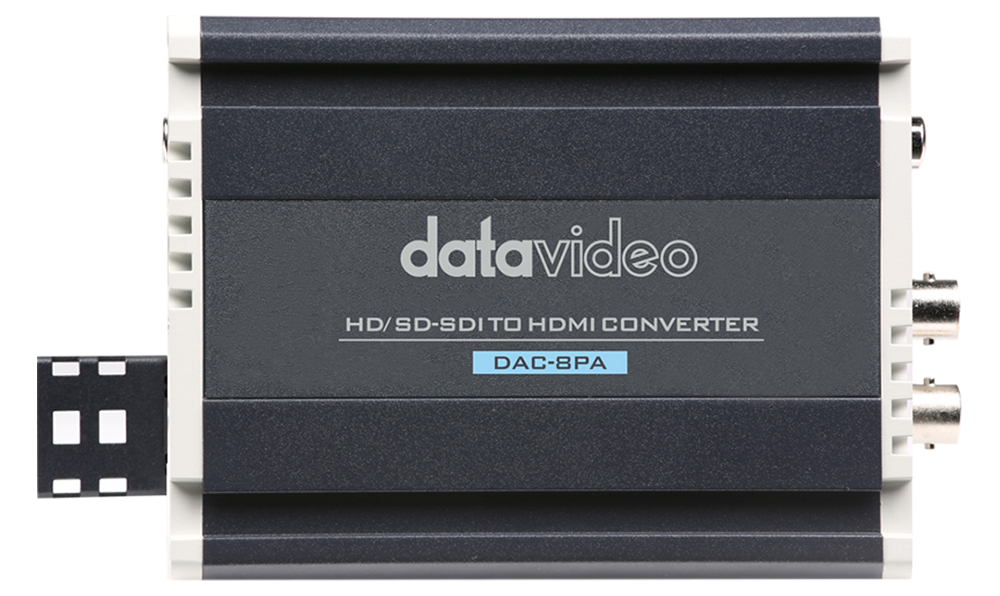

About The Datavideo DAC-8PA Converter
Convert SDI to HDMI with audio de-embedding options
The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output.
Supports 1080p 50/60
Automatic input signal and colour depth detection with support for Deep Colour.

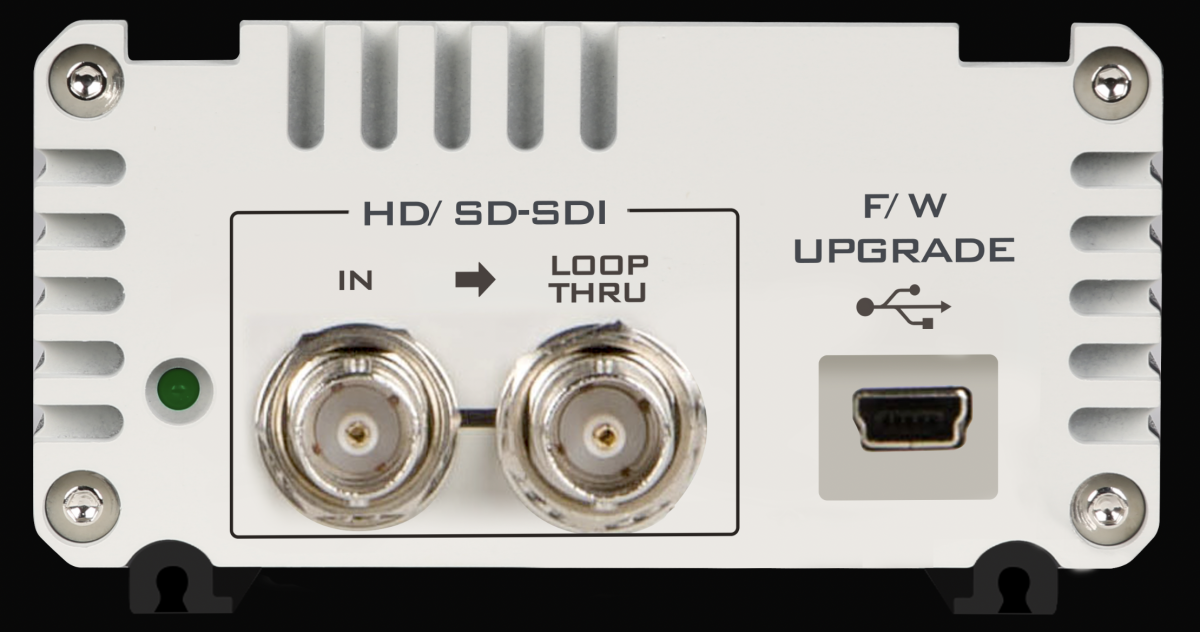

Supports SDI Loop-Through Output
Simultaneous SDI loop-through with HDMI output
Aluminium Alloy and Heavy Duty Design
Super sturdy and durable. The DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
Model Number DAC-8PA
Conversion 3G/ HD/SD-SDI para HDMI
Video Inputs 1x 3G/HD/SD-SDI
Loop Through 1
Video Outputs 1x HDMI
com Áudio embedded
Audio Inputs 2x SDI Áudio embedded
Audio Outputs 2x RCA (Esteréo)
Audio Format Selection —-
Audio Gain —-
Supported Video Input Formats 1080p (23.98/24/25/29.97/30/50/59.94/60Hz),
1080i (50/59.94/60Hz),
720p (50/59.94/60Hz),
625i 50 (PAL), 525i 59.94 (NTSC)
Output Resolutions Combina automaticamente a entrada de vídeo SD, HD e 3G SDI
Equalizer Sim
Reclock Sim
SDI Cable Drive Sim
Updates and Configuration Mini USB x 1
Dimension (LxWxH) 112 x 85 x 45 mm
Weight 0.4 kg
Operating Temp. Range 0~40 °C
Power DC 12V, 4W
