Datavideo Bundle With Showcast AND 3x PTC-280S

OVERVIEW
The Showcast 100 full production bundle BDL-1607 is a comprehensive package that includes three PTC-280 cameras and a Showcast 100 production station. The Showcast 100 is the central component of this bundle, serving as a high-quality UHD workstation with built-in camera control, streaming, and recording capabilities. The PTC-280 cameras are ideal for small to medium-sized UHD productions and can be easily controlled from the Showcast 100 control panel. Additionally, the bundle includes the HC-800 carrying solution, which can accommodate all three cameras, power supplies, and extra space for cables (not included). Datavideo recommends using high-quality HDMI cables up to 15 meters or active optical cables up to 100 meters for optimal performance.

The Showcast 100 is a complete touch-panel solution that can be operated even by untrained operators. It offers seven major functions, including video switching, text and graphics overlay, camera control, live streaming, recording, and audio mixing, all from a single unit. The 14-inch touch panel allows for easy and intuitive access to switcher functions, similar to a tablet. The PTC-280 is a professional PTZ camera that can be controlled via traditional RS-422 serial port or IP remote control using Datavideo’s proprietary DVIP protocol or Sony VISCA over IP. This brand new 4K camera series also supports dual streaming output, making it easy to stream to multiple platforms simultaneously, such as Facebook and YouTube. It is also compatible with dvCloud, making it a versatile and powerful tool for the A/V market.

SUMMARY
Resolution and Frame Rate: 2160p @ 60fps
Sensor: CMOS
Video Outputs:
HDMI
HDMI 2.0
Weight: 2-5kg
INCLUDED IN BOX
1x Showcast 100
3x PTC-280
1x HC-800

About The Datavideo Bundle With Showcast AND 3x PTC-280S
Showcast 100 full production bundle

BDL-1607 is a complete production ready bundle with three cameras and a Showcast 100 production station The beating heart of this bundle is the Showcast 100, our flagship UHD workstation with built in camera controller, streaming and recording. Three PTC-280’s are included and are perfect for any small to medium sized UHD production with broadcast quality. You can connect another HDMI source to the Showcast 100 for a presentation or titles via lumakey. The cameras are controlled directly from the Showcast 100 control panel, and the presets can be triggered from the 14″ touch screen. HC-800 is the carrying solution for this bundle, with room for three cameras, the power supplies and extra space for cables*.

*Cables are situation specific and therefore not included. Datavideo recommends using high quality HDMI cables up to 15 meters, or active optical cables up to 100 meters.

The Showcast 100 is a complete touch-panel solution and can be operated easily even by untrained operators.

Showcast 100

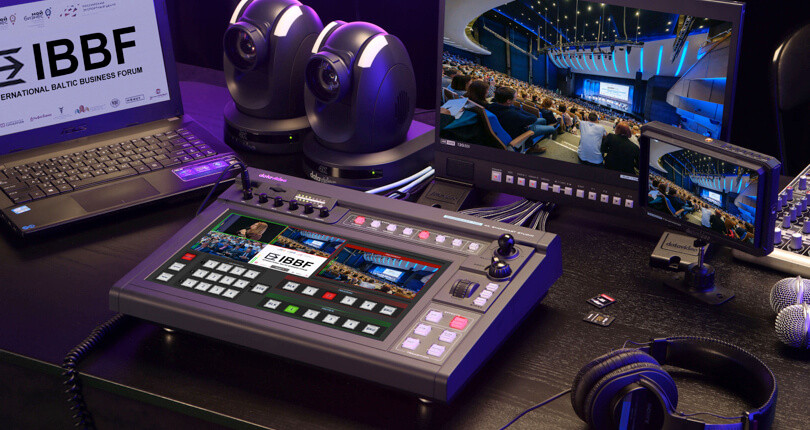

The SHOWCAST 100 is a brand new 4K 4-Channel All-in-one Production Studio that features 7 major functions. It can switch video, overlay text and graphics, control cameras, live stream, record, and mix audio all from a single unit. Similar to a tablet, the 14-inch touch panel allows easy and intuitive access to switcher functions.

PTC-280

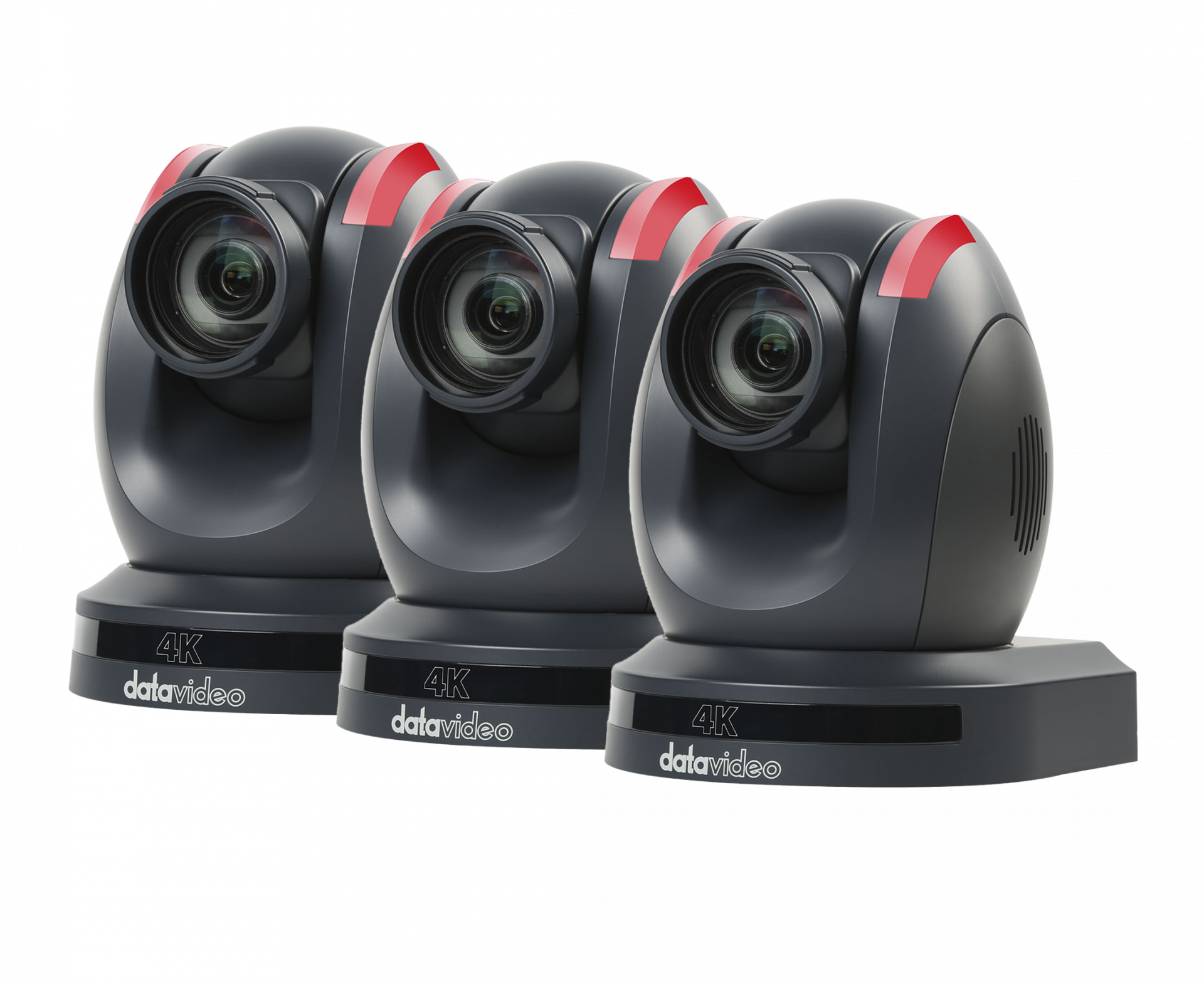

Datavideo is introducing the 4K50/60p PTZ camera lineup which includes the PTC-280 Professional PTZ Camera that can be easily controlled via traditional RS-422 serial port or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP.

This brand new 4K camera series supports dual streaming output for A/V market applications, so you can easily stream to Facebook (RTMPS), YouTube simultaneously. It also works well with dvCloud.

SHOWCAST 100
Video Standard 4K & HD
Video Format Input:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
VGA, XGA (1024 x 768), SXGA (1280 x 1024),
UXGA (1600 x1200), WUXGA (1920 x 1200)
Output:
3840x2160p: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50, 720p: 60/59.94/50
Video Processing 4K60
YUV4:4:4 8bit, YUV 4:2:2 8/10bit, YUV 4:2:0 8bit, RGB 4:4:4 8bit
4K30
YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, YUV 4:2:0 8bit,
RGB 4:4:4 8/10/12bit
HD
YUV4:4:4 8/10/12bit, YUV 4:2:2 8/10/12bit, RGB 4:4:4 8/10/12bit
Input Routable / Crosspoint N/A
Video Input 4 x HDMI 2.0
Mix HD & SD Source —-
Computer Graphic Interface 4 via HDMI
Video Output 3 x HDMI 2.0 for PGM
1 x HDMI for CG Preview
Down-converted Output Yes
Built-in Multi-view Monitoring Out On 14″ Touch Panel
Analogue Audio Input 2 x 3 Pin XLR / 1/4” (6.3mm) Combo Socket
1 x Stereo RCA set (L/R)Audio Input Switch: Stereo / Mono
Analogue Audio Output 1 x Stereo RCA set (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio Support Input 2 channels, Output 2 channels
Audio Delay Calibration Up to 200ms
A+V Switching Yes
Chromakey —-
Title Creator Web GUI
USK Lumakey
DSK —-
Picture in Picture 1
Logo Insertion —-
Still Store —-
Effects Seamless Cut, WIPE, Mix
Transition Preview —-
Sync / Reference In/Out Built-in Genlock (internal)
Tally Output D-Sub -15 Male connector
PC Remote Control Web browser UI for configuration and control
Socket commands
Camera Control DVIP/ RS-422/ RS-232
Built-in Audio Mixer Yes
Storage 1 x SD Card Slot
Supports SD, SDHC and SDXC card (UHS-I) (Class 10 above)
Recording File System FAT, NTFS, exFAT
Recording File Format MP4
Video Encode H.264 / AVC, Main/ High Profile
Record Only: Up to 16Mbps (1080p 50/60)
Stream Only: Up to 10Mbps (1080p 50/60)
Rec and Stream: Up to 10Mbps (1080p 25/30)
Rec and Stream: Up to 36Mbps (1080p50/60), Dual Stream
Audio Encode AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP (Publish)
Firmware Update Ethernet, USB
Special Features 14.0″ Touchscreen Display
Chassis Unibody
Dimension (LxWxH) 437.6 x 330.5 x 96.5mm
Weight 5.4 Kg
Power DC 12V 82W
Operating Temp. Range 0~40 °C
PTC-280’s
Video format/Resolution HDMI:
2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
SDI:
1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
(2160p 60/59.94/50 YUV 4:2:0 only)
Image Sensor 1/2.5″ CMOS
Effective Pixels (approx.) 8.51Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 12x Optical Zoom, 16x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions 2D/3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control Yes
Mirror / Flip Image Yes
Focus Mode Auto/Manual
Panning / Tilting Range Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset 255
Focal Length 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide) 71°
Image Compensation Back light compensation
Video Output HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input 3.5mm x1
Tally LED Yes
Lens Filter N/A
Control Protocol Pelco-D, Pelco-P,
VISCA, VISCA over IP
DHCP, RTSP, RTMP (IP Cam), RTMPS,
DVIP
Remote Control Interface IR
Web UI
RS-422
DVIP
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
HD IP Interface —-
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
First Stream Supported Resolution 3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution 1280×720
1024×576
720×576 (50Hz)
720×480 (60Hz)
720×408
640×360
480×270
320×240
Video Bitrate 32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE IEEE 802.3at
F/W Update Via Web UI or USB 2.0
IR Control Yes
Camera Control Unit RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Dimension (LxWxH) 173 (W) x 219 (H) x 189.08 (D)
Weight 2.8 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
HC-800
Dimensions: External: 625 x 420 x 340 mm
Internal: 575 x 360 x 250 mm
Internal Lid: 575 x 360 x 40 mm
Material: Polypropylene
