OVERVIEW
The BDL-1603 is a complete production bundle that includes three cameras, a camera controller, and the HS-3200 MobileCast workstation. This flagship workstation has built-in streaming and recording capabilities, making it perfect for small to medium sized productions. The bundle also includes the RMC-300A camera controller and the HC-800 and HC-600 carrying solutions. However, cables are not included as they are situation specific. Datavideo recommends using high quality SDI cables up to 100 meters.
The HS-3200 brings simplicity and professional broadcasting features such as chromakeying and PiP options to a portable workflow. It can connect up to 12 cameras or other sources and has a built-in H.264 web streaming encoder for easy streaming to platforms like YouTube and Facebook. The PTC-140 cameras included in the bundle feature Full HD resolution and a streaming output over a LAN connection. The RMC-300A camera controller is also included, which can control up to 24 cameras. The bundle is stylish and durable, ideal for mobile productions, and is seamlessly compatible with Datavideo’s dvCloud service for streaming and recording to multiple destinations simultaneously.
SUMMARY
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 1080p 50fps
Sensor: CMOS
Video Outputs:
HDMI
SDI
Weight: 0-2kg
INCLUDED IN BOX
1x HS-3200
3x PTC-140
1x HC-600
About The Datavideo Bundle With HS-3200 And 3x PTC-140
BDL-1603 is a complete production ready bundle with three cameras and a camera controller. The beating heart of this bundle is the HS-3200, our flagship MobileCast workstation with built in streaming and recording. Three PTC-140’s are included and are perfect for any small to medium sized production with broadcast quality. You can connect up to 12 cameras or other sources to the HS-3200. For controlling your cameras we include the RMC-300A. HC-800 and HC-600 are the carrying solutions for this bundle, with room for three cameras, the controller and extra space for cables*.
*Cables are situation specific and therefore not included. Datavideo recommends using high quality SDI cables up to 100 meters.

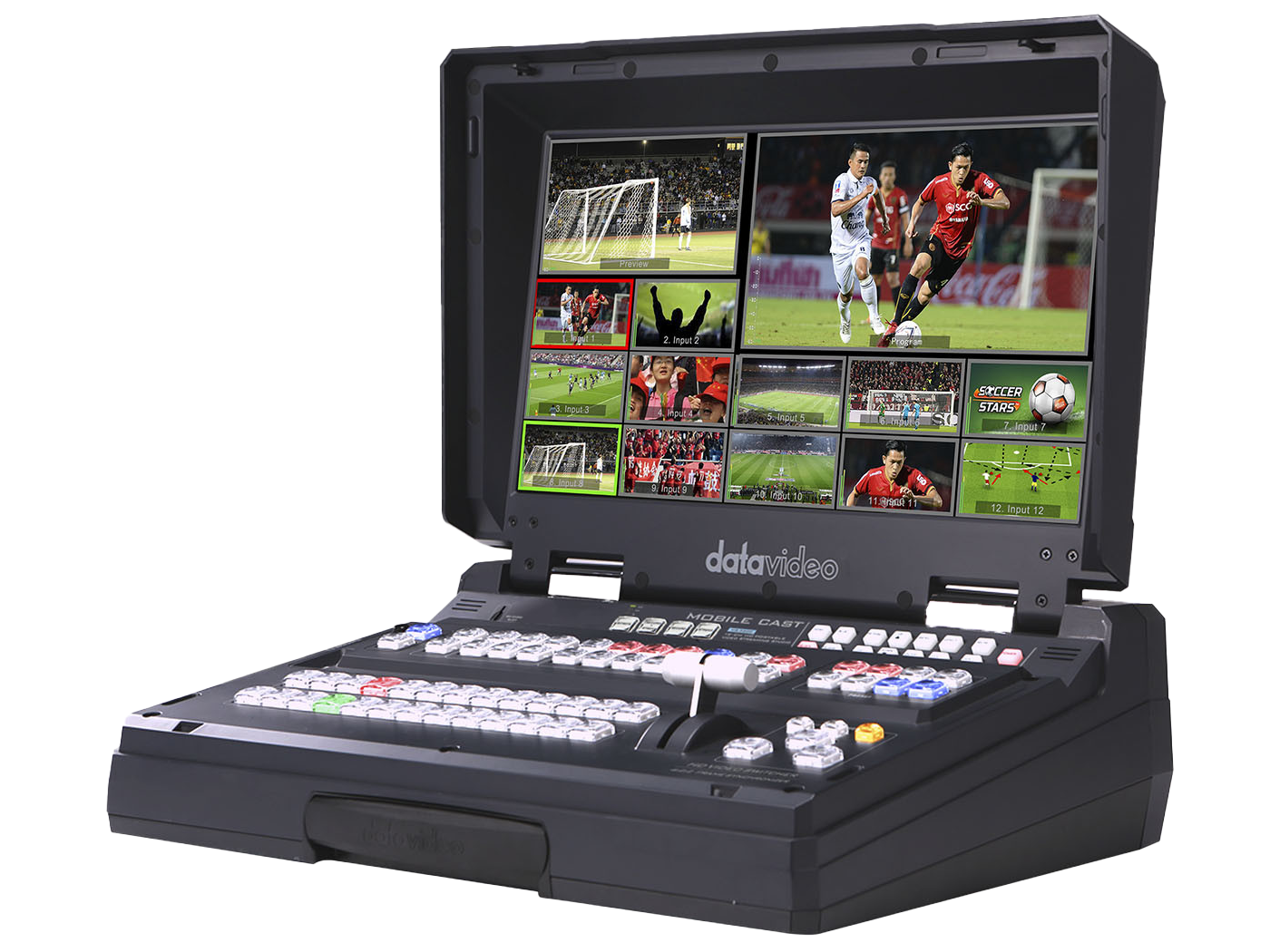

Flagship MobileCast production station
The HS-3200 brings a new level of simplicity to a professional portable workflow. Setting up is a breeze with its “suitcase” design whilst maintaining all professional broadcasting features such as chromakeying and extensive PiP options. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time. HS-3200 is also seamlessly compatible with out own dvCloud service.
Up to 12 FullHD inputs with scaling
The HS-3200 is Datavideo’s top of the line switcher with full 1080p support on each of the 12 inputs and output, and not only has this, but 3200 series also has a built-in input scaler, for up and down conversion on each available input. Cross point assignment is very easy using the OSD of the switcher.

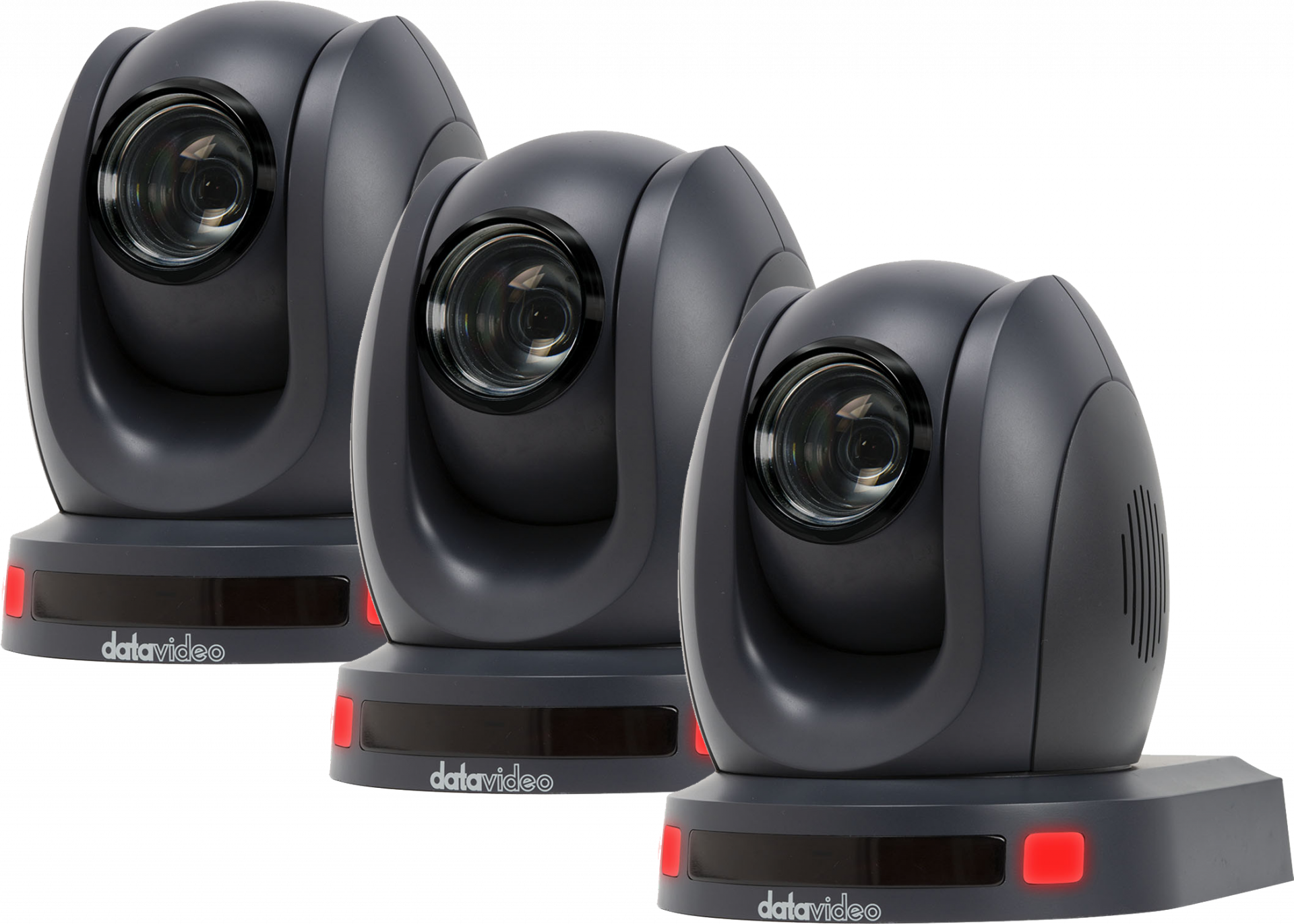

Stunning Full HD resolution PTZ camera
The PTC-140 features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution up to 60fps. The PTC-140’s 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots. Next to a regular SDI output, PTC-140 also features a streaming output over a LAN connection.

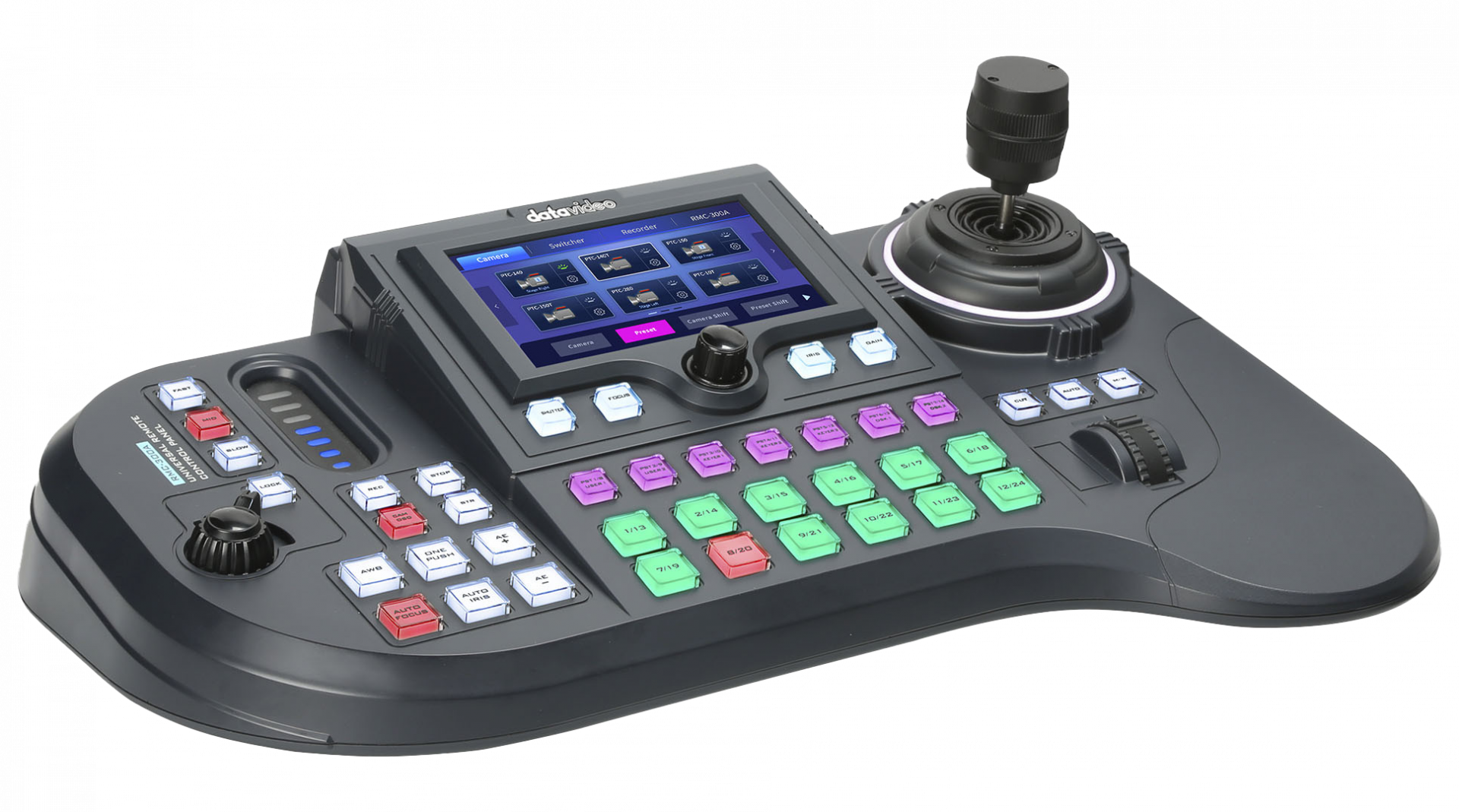

Our best camera controller ever
The included RMC-300A is our brand new camera controller. This completely digital controller works with either serial control or DVIP cameras over a network. Up to 24 cameras can be assigned to this controller.
Stylish and durable – ideal for mobile productions
Heavy duty case made from super strong polypropylene. Shock proof, vibration proof, dust proof and rust proof Sealed for moisture protection. Handy pull-out handle and wheels for easy transporting. Laser cut foam inlay that precisely fits three PTC-140 cameras including cables. The HC-600 will fit the RMC-300A and is a regular hand held briefcase model.
Seamlessly compatible with dvCloud
Get the most out of your streaming hardware using DVCloud. TheHS-1600T is seamlessly compatible with Datavideo’s DVCloud service.
This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.
You can also record your production on the DVCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.
Direct SRT streaming to dvCloud prevents hickups and lag in your stream, especially when using slow or unreliable internet connections or when streaming large distances (for instance to the other side of the globe). Even if your destination does not support SRT you can still stream SRT to dvCloud and go to the destination in RTMP.
HS-3200
Video Standard Full HD
Video Format 1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Input Routable / Crosspoint All 12,
repeatable
Video Input 8x SDI, 4x HDMI
Computer Graphic Interface 4 via HDMI
Down-converted Output 1x SDI
Video Output 5x SDI, 1x HDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
3x HDMI PGM only
Analogue Audio Input 4x Balanced XLR
Analogue Audio Output 2x Balanced XLR
Digital Embedded Audio Support Input 2 channels,
Output 4 channels
Audio Delay Calibration Up to 16 frames
A+V Switching Yes
USK 4
DSK 2, support Lumakey & Linear key
(Key / Fill)
Picture in Picture 8 (4x Keyer, 4x Flex Source)
Logo Insertion 2
Title Creator Yes, CG-200 software free
download
Built-in Audio Mixer —-
Built-in Monitor Display 17.3” HD TFT LED
backlit, 1920×1080 pix
Built-in Intercom & Tally —-
Streaming
Streaming H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode AAC-LC
Configurable bit rate range from 32Kbps to
384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol TS over TCP/UDP
(unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP
Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Streaming Control Web browser UI for
configuration and control Socket commands
Recording File System FAT, exFAT, NTFS
Recording File Format MP4
Streaming & Recording Setting Control Web
UI for system configuration and control
Others
Special Features 4 Chroma-Key Virtual Studio
9 stinger transition and 4 user preset
Built in TC-200 CG interface
Streaming encoder and recorder
12×9 matrix seamless switch
Dimension (LxWxH) 455 x 355 x 134 mm
Weight 17.8 Lbs (8.1 kg), Reinforce Plastic
Case
Power DC 12V, 11A
Operating Temp. Range 0~40 °C
PTC-140
Video format/Resolution 1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.) 2.07 Mega pixels
S/N Ratio >55dB
Min. Illumination 0.5Lux (F1.8, AGC ON)
Electronic Shutter Auto / Manual
Zoom Ratio 20x Optical Zoom, 10x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions Yes
On-Screen Display (OSD) English, Simplified Chinese
White Balance Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control Auto / Manual
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning / Tilting Range Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset 255 Position
Focal Length f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide) Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation Backlight Compensation
Video Output HDMI x 1
SDI x 1
Audio Input 3.5mm Line in
Tally LED Dual color (Red, Green)
Lens Filter M52.0 x 0.75 Thread with UV Protection
Control Protocol VISCA, Pelco-D, Pelco-P, DVIP
Remote Control Interface RJ-45: for IP control (DVIP)
RS-232
RS-422
RS-485
Video Compression Format H.264, H.265, Dual stream output
Audio Compression Format AAC/MP3/G.711A Audio compression
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
HD IP Interface 100M IP port(100BASE-TX); Support DVIP
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
First Stream Supported Resolution —-
Second Stream Supported Resolution —-
Video Bitrate —-
Video Bitrate Mode —-
Encoding Frame rate —-
POE —-
F/W Update Ethernet
IR Control Yes
Camera Control Unit RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Dimension (LxWxH) 156 x 184 x 186 mm
Weight 1.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
