Datavideo Bundle HS-1600T With PTC-140T Cameras

OVERVIEW
The HS-1600T is a game-changer for producers on the go. Its compact design and use of HDBaseT Technology make setup a breeze. With the built-in H.264 web streaming encoder, you can easily stream your show to popular CDNs like YouTube and Facebook. This versatile system allows for single cable connections for cameras, reducing setup time and allowing for placement in challenging locations without nearby power outlets. The PTC-140T camera boasts stunning Full HD resolution and a 20x optical zoom, making it perfect for any production.

Thanks to the use of HDBaseT technology, the HS-1600T can transmit all signals, power, and control data through a single CAT6 cable up to 75 meters. This eliminates the need for multiple cables and simplifies the setup process. The system is also designed to be durable and portable, with a heavy-duty case and wheels for easy transportation. The foam inlay is precisely cut to fit three PTC-140T cameras and cables, as well as the HS-1600T power supply. The HS-1600T is the perfect solution for producers who need a reliable and efficient system for their mobile productions.

SUMMARY
Lens Zoom: 20x Optical Zoom
Sensor: CMOS
Video Outputs: HDMI
Weight: 0-2kg
INCLUDED IN BOX
1x HS-1600T
3x PTC-140T
1x HC-800

About The Datavideo Bundle HS-1600T With PTC-140T Cameras
The Web Streaming Studio for Producers on the Move

The HS-1600T brings a new level of simplicity to production workflows. You’ll set up faster and easier thanks to its portable “briefcase” design and HDBaseT Technology. And thanks to its built-in H.264 web streaming encoder, you can stream your show to virtually any CDN like YouTube and Facebook in no time.

Made with HDBaseT Technology

Camera connections typically require one cable for video, a second cable for power, and a third one for control. However, the HS-1600T is able to do all of the above using only one ethernet cable for each camera. This increase in flexibility greatly reduces setup time, and now you can mount the camera in challenging locations (like spots without nearby power outlets)

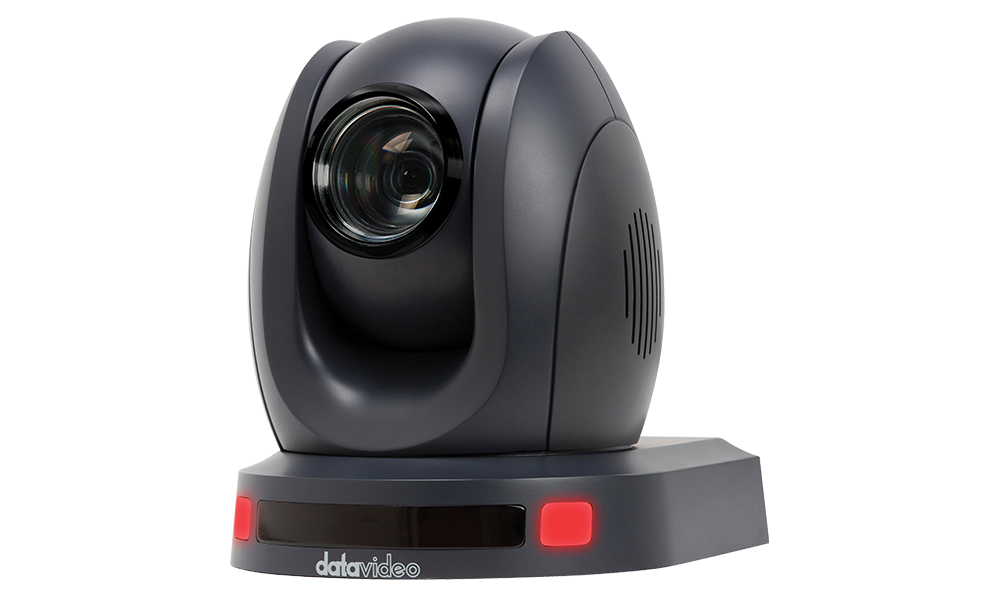

Stunning Full HD resolution PTZ camera

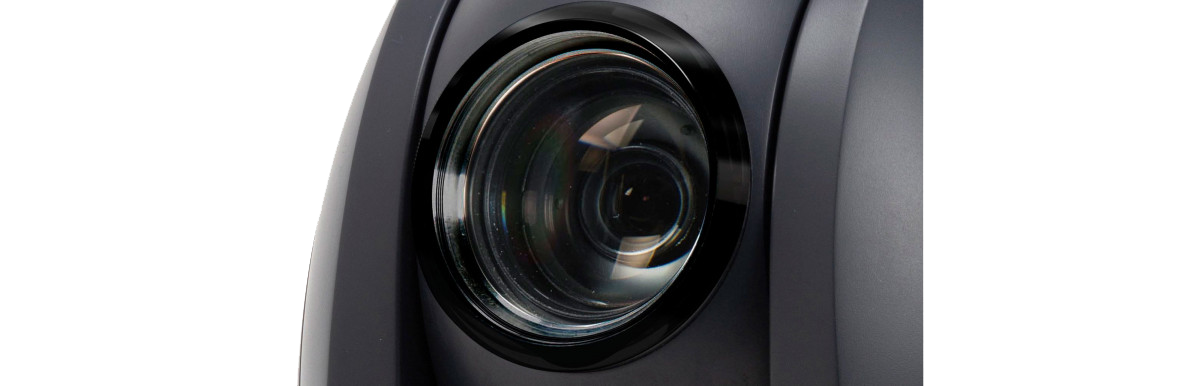

The PTC-140T features 1/2.8 inch CMOS sensor, 1920x1080px Full HD resolution up to 60fps. The PTC-140T’s 20x optical zoom and 10x digital zoom allows you to mount it near or far and still get great, sharp shots.

Single cable transmission by HDBaseT technology

Based on HDBaseT technology, all signals, power, and control data travel through a single CAT6 (“network cable”) with lengths up to 75 meters

Stylish and durable – ideal for mobile productions

Heavy duty case made from super strong polypropylene. Shock proof, vibration proof, dust proof and rust proof Sealed for moisture protection. Handy pull-out handle and wheels for easy transporting. Laser cut foam inlay that precisely fits three PTC-140T cameras including cables and the HS-1600T power supply.

HS-1600T
Video Standard HD & SD
Video Format 1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
576i/p 50Hz
480i/p 59.94Hz
Input Routable / Crosspoint —-
Video Input 3 x HDBaseT
1 x HDMI
Computer Graphic Interface 1 via HDMI
Down-converted Output Yes
Video Output 3x HDMI PGM
1x HDBaseT PGM
1x STREAM (RJ-45)
Analogue Audio Input 2x Balanced XLR
1x Stereo RCA (L/R)
De-embedded Digital Audio
Analogue Audio Output 1x Stereo headphone
Digital Embedded Audio Support Input 2 channels, Output 2 channels
Audio Delay Calibration —-
A+V Switching —-
USK 1x USK support Lumakey
DSK —-
Picture in Picture 1
Logo Insertion —-
Title Creator —-
Built-in Audio Mixer Yes, 4 channels
Built-in Monitor Display 17.3” HD TFT LED backlit, 1920×1080 pix
Built-in Intercom & Tally —-
Streaming
Streaming H.264 / AVC, Main/ High Profile
Configurable Bit-rate up to 10Mbps
Streaming Audio Encode AAC-LC
Configurable bit rate range from 32Kbps to 384Kbps
Sample rate: 48KHz, 16bit
Streaming Protocol TS over TCP/UDP (unicast & multicast)
RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
RTMP/RTMPS (Publish)
HLS
SRT
Streaming Control Web browser UI for configuration and control Socket commands
Recording File System FAT, exFAT, NTFS
Recording File Format MP4
Streaming & Recording Setting Control Web UI for system configuration and control
Others
Special Features Built-in camera controller
Dimension (LxWxH) 455 x 355 x 134 mm
Weight 17.2 Lbs (7.8 kg), Reinforce Plastic Case
Power DC 48V, 4.16A
Operating Temp. Range 0~40 °C
PTC-140T
Video format/Resolution 1080p 60/59.94/50/30/29.97/25
1080i 60/59.94/50
720p 60/59.94/50
Image Sensor 1/2.8 inch high quality HD CMOS sensor
Effective Pixels (approx.) 2.07 Mega pixels
S/N Ratio >55dB
Min. Illumination 0.5Lux (F1.8, AGC ON)
Electronic Shutter Auto / Manual
Zoom Ratio 20x Optical Zoom, 10x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions Yes
On-Screen Display (OSD) English, Simplified Chinese
White Balance Auto, Manual, One Push, 3000K, 4000K, 5000K, 6500K
AGC / Gain Control
Auto / Manual
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning / Tilting Range Pan: 340° , Tilt: +90° to -30°
Panning / Tilting Speed Pan: 0.1~60°/sec
Tilt: 0.1~30°/sec
Preset 255 Position
Focal Length f=5.2 (wide) to 98 (tele) mm
F1.6 to F3.5
Field of View (Horizontal, Wide) Approx. 54.7° (WIDE END) / 3.3° (TELE END)
Image Compensation Backlight Compensation

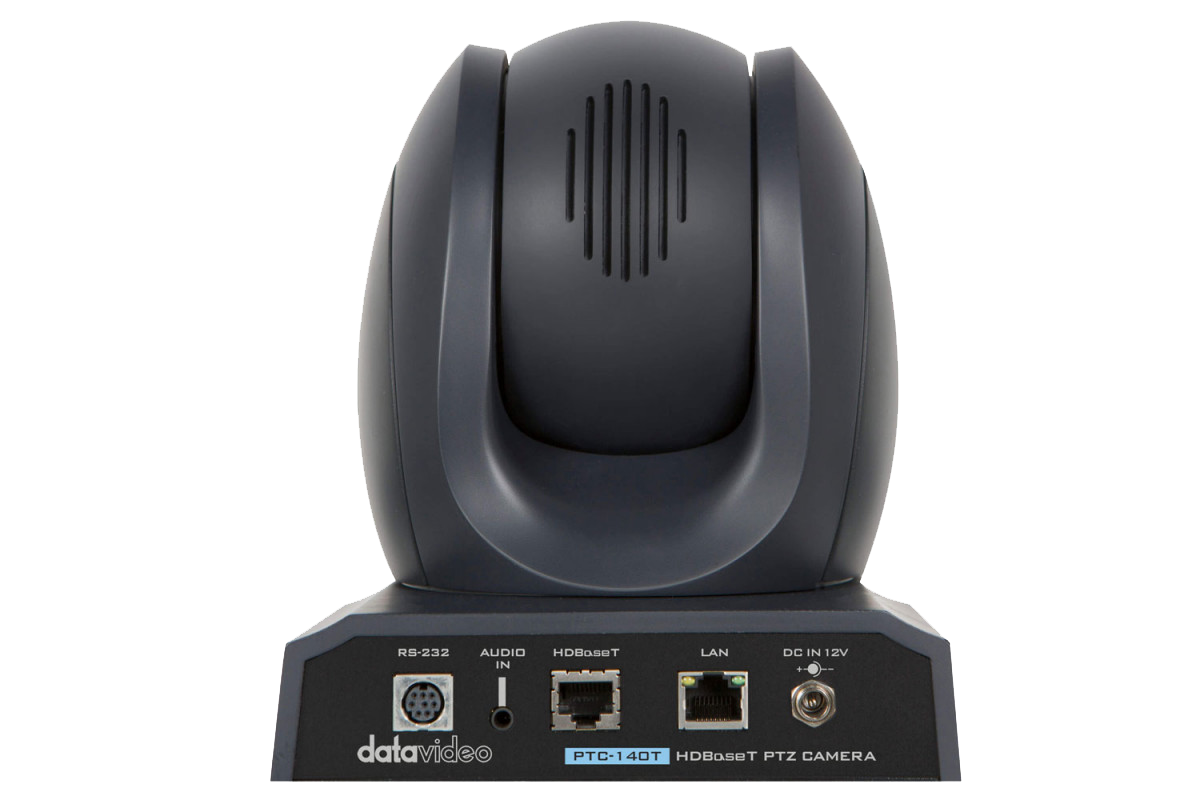

Video Output HDBaseT (PoE) x1
RJ-45 x1
Audio Input 3.5mm Line in
Tally LED Dual color (Red, Green)
Lens Filter M52.0 x 0.75 Thread with UV Protection
Control Protocol VISCA, Pelco-D, Pelco-P, DVIP
Remote Control Interface RS-232
Lan (RJ-45)
HDBaseT(RJ-45)/Serial control on Receiver Box: Transmit up to 100m
Video Compression Format
H.264, H.265, Dual stream output
Audio Compression Format AAC/MP3/G.711A Audio compression
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
HD IP Interface 100M IP port(100BASE-TX); Support DVIP
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), DHCP, SRT, Multicast, etc
First Stream Supported Resolution —-
Second Stream Supported Resolution —-
Video Bitrate —-
Video Bitrate Mode —
Encoding Frame rate —-
POE —-
F/W Update Ethernet
IR Control Yes

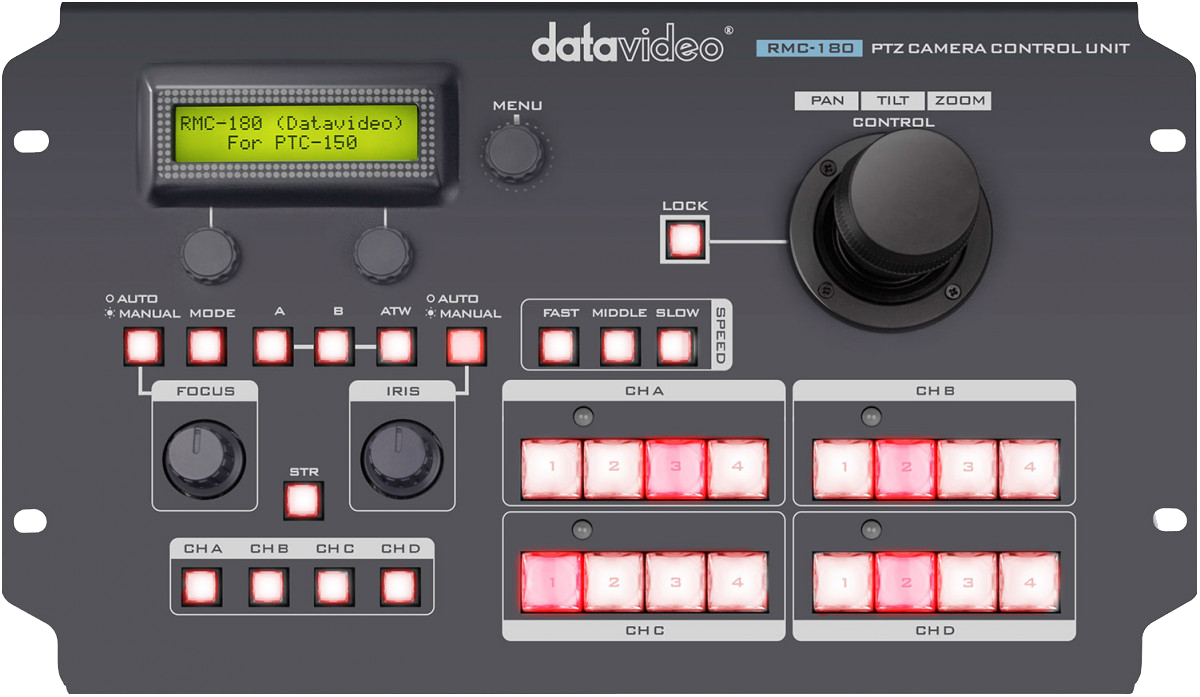

Camera Control Unit HS-1500T/HS-1600T series/RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Color Black/White
Dimension (LxWxH) 156 x 184 x 186 mm
Weight 1.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
