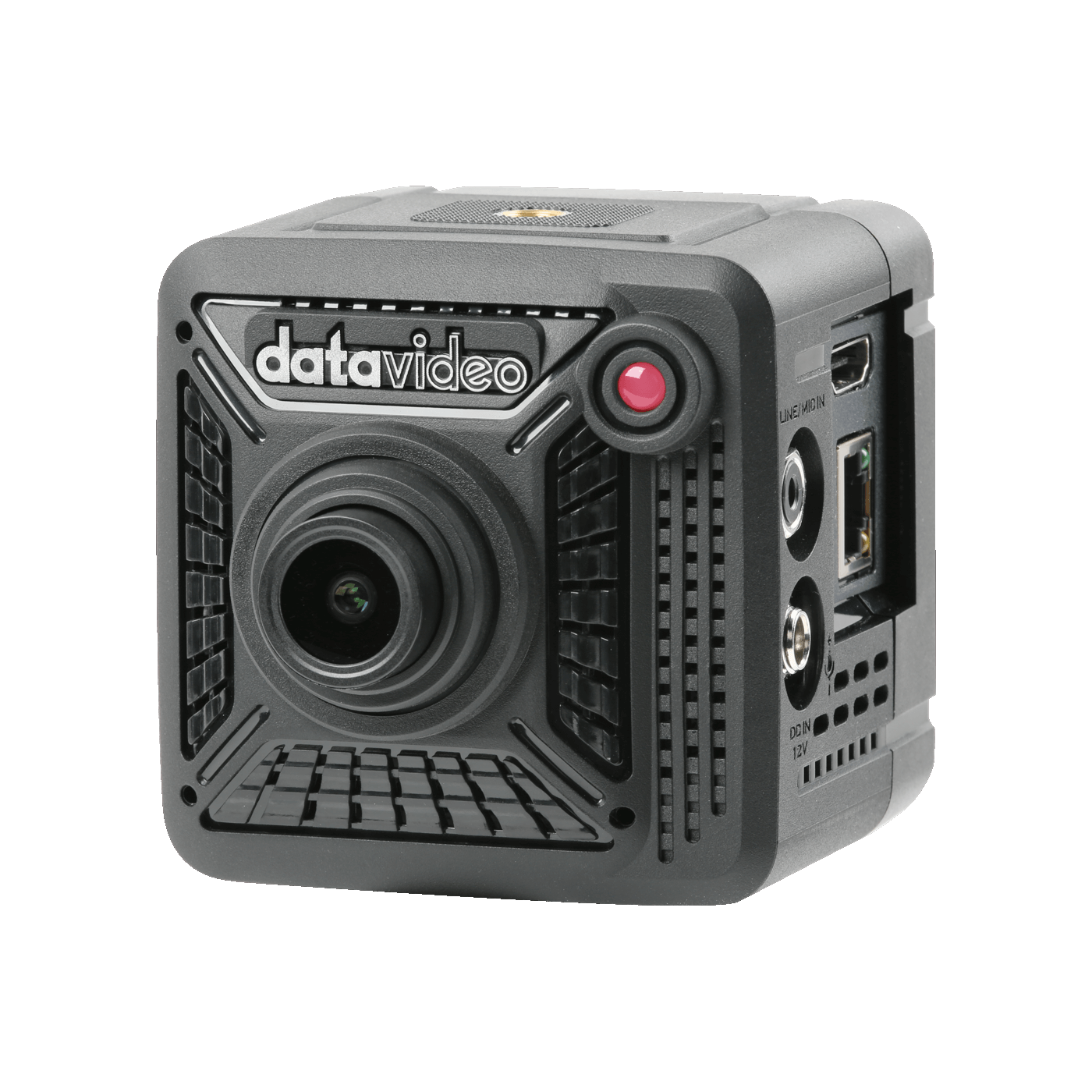

Datavideo BC-15P – 4K POV Camera

OVERVIEW
The BC-15P camera is designed to be compact and versatile, with a small box design that allows it to be mounted anywhere without compromising on quality. Its 1/2.3″ 4K CMOS sensor captures high-quality images with incredible detail, and the built-in fixed lens eliminates the need for additional lens purchases.

One of the standout features of the BC-15P is its support for the SRT streaming protocol, which ensures a reliable stream even in unstable network environments. It also features H.264/H.265 video compression for simultaneous streaming to multiple platforms, and built-in tally lights for easy camera identification during multi-camera productions. With the added convenience of Power over Ethernet and physical buttons for easy setup, the BC-15P is a professional-grade camera that seamlessly integrates with Datavideo’s dvCloud service for even more streaming capabilities.

SUMMARY
Resolution and Frame Rate: 1080p
Weight: 0-2kg
INCLUDED IN BOX
1 x BC-15P Main Unit
1 x Standard Lens (attached on camera with lens cap)
1 x Wide-angle Lens (attached with lens caps)
1 x DC 12V power adaptor

About The Datavideo BC-15P – 4K POV Camera
Designed to be Compact

Small box design makes it flexible to be mounted anywhere. Though it is compact, it doesn’t compromise on quality. 1/2.3” 4K CMOS sensor captures high quality images and incredible details of the subject.

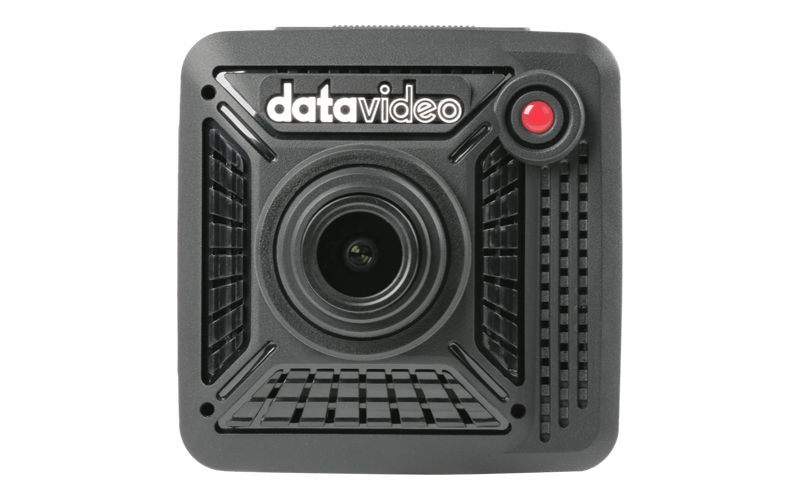

Built-in Fixed Lens

Built-in swappable fixed lens. No need to purchase lenses additionally, which can be costly.

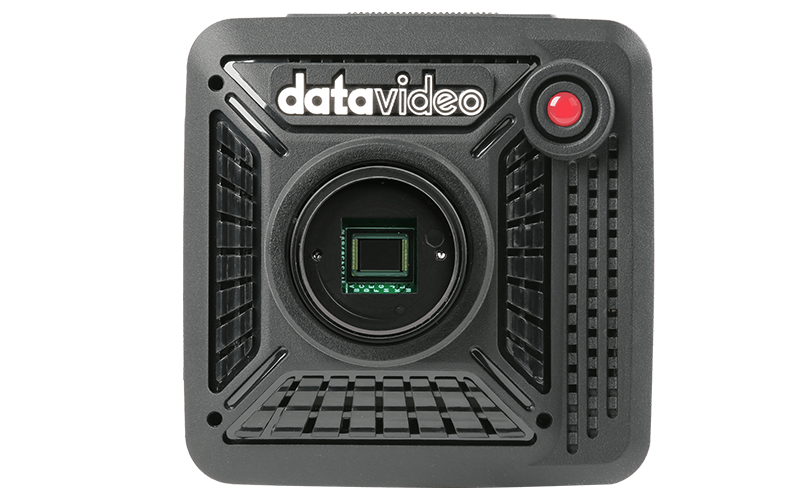

1/2.3” CMOS Sensor with 4K 50/60p output

BC-15P is one of the best cameras for capturing eSport applications with the included eSport lens. While changing back to the standard lens, it will fulfill the other wide range applications.

Support SRT streaming protocol, no need to worry about unreliable network environment

Many broadcasters have experienced pixelated video during live streaming, often due to unstable network environments caused by bandwidth volatility.
Streaming RTMP over unreliable, low-bandwidth networks can cause issues. With dvCloud, you can now replace the RTMP protocol with SRT, which will fix most streaming issues you may have. SRT is better than RTMP because it handles problematic networks more efficiently.
It requires less bandwidth, and it solves data errors faster. As a result, your viewers will experience a better stream, with less buffering and pixelization.

H.264/H.265 video compression for streaming

During video production, you can stream simultaneously to live streaming platforms such as Facebook, Youtube and Twitch. With Datavideo dvCloud, you can stream to 25 live streaming platforms at the same time and automatically back up your video files on the cloud server.

Built-in Tally Light

Built-in tally lights make it easier for the talent to know which camera is live during a multi-camera live production.

Power over Ethernet

The BC-15P supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your BC-15P.

Physical Buttons Make Camera Setup Very Easy

When the camera is set up, there is no need to use an additional remote controller. The physical buttons on the rear panel of the BC-15P make it very easy to adjust settings.

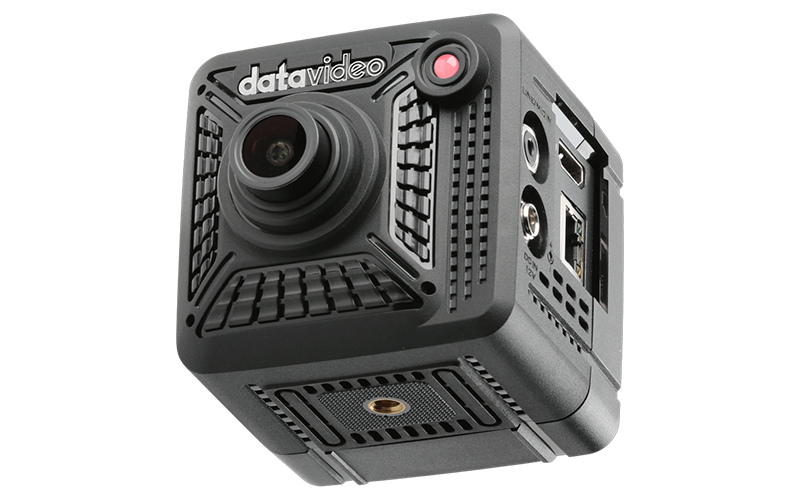

1/4” Screw Hole for Mounting

Changing the camera angle is easy with the three 1/4” screw holes on the BC-15P. It gives you the flexibility of mounting it anywhere.

Professional APP

Camera – The APP will automatically scan the network for connected DVIP devices. All detected BC- 15P devices will be listed for selection.

Encoder – Provides H.265/264 video coding standard or high efficiency video coding for various major streaming platforms.

Streaming – The main encoder uses the latest SRT protocol as well as the standard RTMP/RTMPS protocols. The multiview screen is streamed to the APP using the sub encoder.

Audio – Professional audio settings allow you to physically configure the audio input. You can make selection of the audio input type (Line/ MIC), audio type (mono/stereo) and audio standard (SMPTE/EBU).

Configuring Live Video on the Mobile Phone

You can adjust the video settings on the mobile phone and use the sub encoder to preview the video as you make changes to the settings. You can also monitor critical camera settings such as HDMI output resolution,camera name, and stream status.

Seamlessly Compatible with dvCloud

Get the most out of your streaming hardware using dvCloud. The BC-15P is seamlessly compatible with Datavideo’s dvCloud service.

This subscription service give you the possibility of sending your stream to multiple destinations at the same time without having to have multiple hardware encoders.
You can also record your production on the dvCloud platform in h.264 format. After recording you can directly use this recording to upload it to your favourite content platform.

Video format/Resolution 2160p 60/59.94/50/30/29.97/25
1080p 60/59.94/50/30/29.97/25
Image Sensor 1/2.3″ CMOS
Effective Pixels (approx.) 12.3Mega Pixels
S/N Ratio 50 dB
Min. Illumination 0.5Lux (F1.0, AGC ON)
Electronic Shutter 1/25(1/30), 1/50(1/60), 1/75(1/90), 1/100(1/120), 1/125(1/150),
1/150(1/180), 1/200(1/210), 1/500(1/600), 1/1000(1/1200), 1/2000(1/2400), 1/4000(1/4800), 1/8000(1/9000) sec
Zoom Ratio 2x Digital Zoom
Gamma Control Standard / Mode1 / Mode2 / Mode3
Iris Control Fixed IRIS (F1.0)
Digital Noise Reductions 2D/3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Colour Temp., R/B Gain, Lock
AGC / Gain Control Auto(AGC) / Manual / Lock
(Follow Exposure Mode)
HDR/WDR WDR
Mirror / Flip Image Yes
Focus Mode Full Manual
Panning / Tilting Range —-
Panning / Tilting Speed —-
Preset —-
Focal Length Standard Lens: 6mm
Wide Lens: 2.8mm
Field of View (Horizontal, Wide) Standard Lens: H: 38.6, V:21.9, D: 44.1
Wide Lens: H: 75.5, V:46.6, D:82.7
Image Compensation Auto

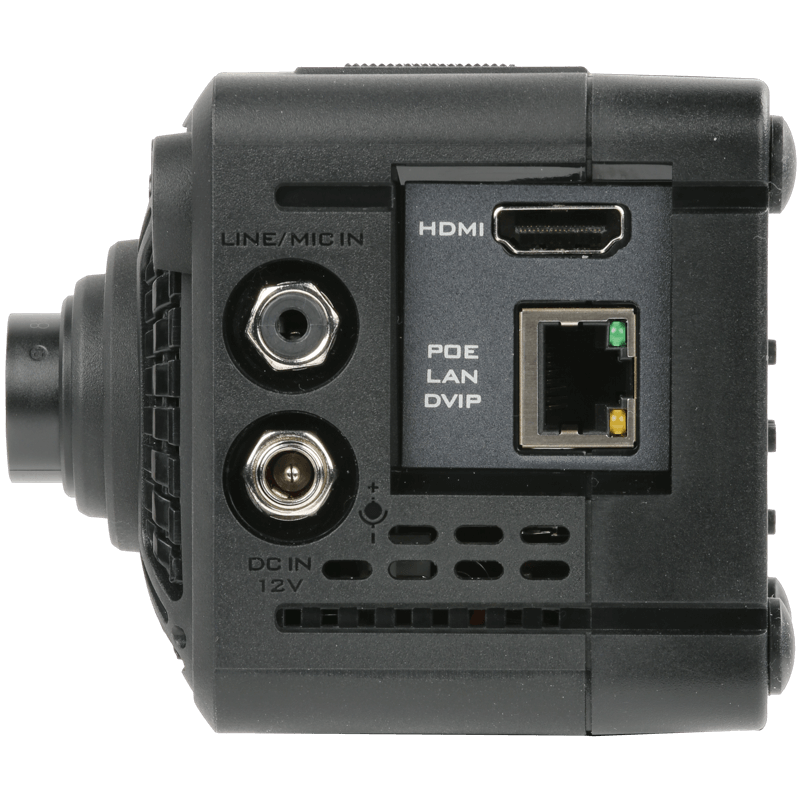

Video Output HDMI 2.0 x1
RJ45 x1
Audio Input 3.5mm Line in/Mic in (Stereo)
Tally LED Dual colour (Red, Green)
Lens Filter IR cut built-in
Control Protocol DVIP
Remote Control Interface RJ-45: for IP control (DVIP)
Video Compression Format H.264, H.265
Audio Compression Format AAC
Audio Bitrate 128Kbps
HD IP Interface 10/100/1000M
Streaming Protocols RTMP(S), SRT
First Stream Supported Resolution 1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution —-
Video Bitrate 1Mbps ~ 7Mbps
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE IEEE802.3af
F/W Update Ethernet
IR Control —-
Camera Control Unit RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories —-
Colour Black
Dimension (LxWxH) 77mm (W) x 82mm (D) x 78mm (H)
Weight 200 g
Operating Temp. Range 0~40 °C
Power DC 12V 9W
