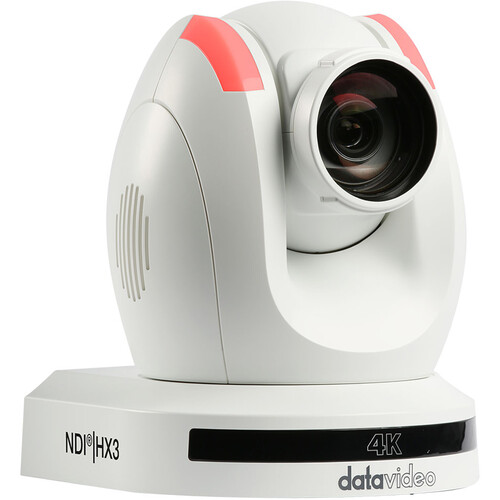

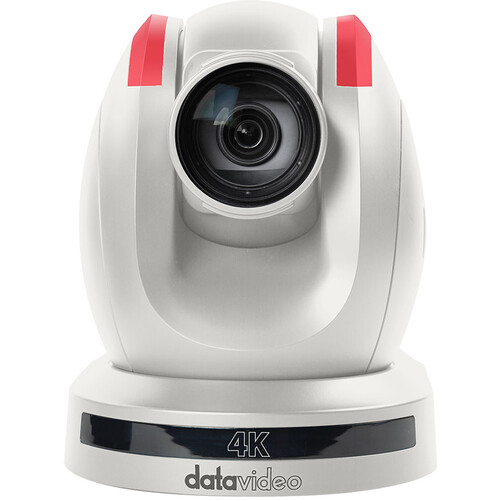

Datavideo 4K Tracking NDI PTZ Camera – White

OVERVIEW
Datavideo is proud to introduce the new 4K50/60p Auto Tracking PTZ camera, PTC-285NDI. This brand new camera series offers high performance and can be easily controlled via traditional RS-422 serial port or IP remote control. It supports dual streaming output for A/V market applications, allowing for easy streaming to popular platforms like Facebook and YouTube. PTC-285NDI also offers multiple simultaneous video output formats, including HDMI 2.0, IP, and 3G-SDI, making it a versatile option for various production setups. With quick access to auto tracking and various framing options, this camera is perfect for live productions.

The PTC-285NDI also features advanced technology such as custom auto object tracking, smart PTZ speed adaptation, and low noise in low light. It supports multiple network protocols and can be controlled with various external controllers. Additionally, it offers a wide field of view, supports H.264/H.265 video compression, and uses NDI | HX3 technology for easy setup and installation. With its Power over Ethernet functionality, the PTC-285NDI eliminates the need for multiple cables and complicated setups. This new 4K camera from Datavideo is a game changer for live productions.

SUMMARY
Max Aperture: f/1.8
Lens Zoom: 12x Optical Zoom
Resolution and Frame Rate: 2160p @ 60fps
Sensor: CMOS
Video Outputs:
3G-SDI
HDMI
Weight: 2-5kg
INCLUDED IN BOX
1 x PTC-285NDI product
1 x IR remote controller
1 x Ceiling mount bracket-A
1 x Ceiling mount bracket -B
6 x Ceiling mount bracket screw M3*4mm
1 x DC 12V Power Adaptor
1 x A tightrope

About The Datavideo 4K Tracking NDI PTZ Camera – White
Brand New 4K Auto Tracking NDI PTZ Camera

Live productions depend on high performance cameras and camera controllers.

Datavideo is introducing the 4K50/60p Auto Tracking PTZ camera, PTC-285NDI can be easily controlled via traditional RS-422 serial port, or IP remote control via DVIP (Datavideo proprietary protocol) or Sony VISCA over IP.

This brand new 4K camera series supports dual streaming output for A/V market application. You can easily stream to Facebook (RTMPS), YouTube and dvCloud.

PTC-285NDI supports multiple simultaneous video output formats. It can output video in HDMI 2.0 and IP formats at resolutions up to 2160p (50/60 frames per second). Additionally, it offers 3G-SDI output at resolutions up to 1080p (60/50 frames per second). This allows for flexible integration with various production setups and equipment.

Quick Access to Camera’s Auto Tracking

You will be allowed direct access to auto tracking via various external controllers such as the supplied RMC-1 remote control and DVIP controllers (RMC-300A, RMC-180 MARK II and PTC View Assist).

In addition to camera controllers, you can also easily enable auto tracking on smart switchers which include KMU-200, SHOWCAST 100, etc as well as complete solution systems like ZR-1 Hybrid Video Production Solution.

Custom Auto Object Tracking

If you are filming multiple people, you can designate a person for auto tracking. Once linked to the camera, only the designated person will be tracked, avoiding interferences such as the desks, people coming back and forth, large objects, etc.

Smart PTZ Speed Adaptation

The integrated PID algorithm is able to detect the movement speed of the identified object and automatically adjust the camera’s corresponding pan, tilt and zoom speeds in such a way that the lens movement will be smooth, avoiding common camera lens movement problems like jerky movements or unpredicted halts.

Quick Access to Framing Options

All of the PTC-285 camera series include RMC-1 controller. User can quickly select full-body, half-body and close up framing, making it easy to change the shooting scene and framing requirements.

Simply enable auto tracking with your IR remote control

RMC-1 PTZ Controller. All you need is a remote control to set and control all four cameras and save the four presets.

PTZ View Assist: Control up to four cameras

The camera control app is tailored for the Datavideo PTZ camera series. It can monitor the live streaming video from PTC-140, PTC-280, PTC-285, PTC-300 and PTC-305 series. The app can control up to 4 cameras simultaneously via DVIP, you can intuitively set up and recall the presets, and adjust white balance, focus and IRIS. The app is able to decode the live streaming via RTSP, and SRT. Easily monitor the live streaming video and set up the parameters promptly in one application. Datavideo provides iOS and Android versions, which you can download on Google Play and App Store for free!

Low Noise in Low Light

Advanced 3D noise reduction technology is also used to further reduce the noise while ensuring image sharpness.

Multiple Simultaneous Video Outputs

Supports simultaneous HDMI 2.0 and IP output up to 2160p 50/60 and also 3G-SDI output up to 1080p60/50.

Multiple Network Protocol with Dual Stream Function

Support RTSP and RTMPS protocols, easy to stream directly to two different CDN platforms and Datavideo dvCloud as well.

Compatible with Various Controller

Control real-time pan, tilt, and zoom camera movements with Datavideo Showcast 100, PTZ View Assist APP, RMC-300A and RMC-180. With configurable preset positions supported.

RS-422, DVIP and Ethernet Camera Control

RS-422 and ethernet to use DVIP or VISCA over IP commands to integrate with larger control systems.

Tally Light

Green and red lights tally to show the preview and program status for broadcast applications.

Wide 80° Field of View

PTC-285NDI provides a wide Field of View of 80°, easily shooting all the scenes in the field.

Supports H.264/H.265 Video Compression

Support compression of resolution up to 3840×2160 with frame up to 59.94, 60fps and the second channel 1280x720p with 30fps compression. AAC, MP3 and PCM audio compression also supported.

One Ethernet Cable with NDI | HX3 Technology

There is no need for multiple cables and complicated setup. Single-wire concept helps you to transfer video, audio, power, tally, and control over only one Ethernet cable.

Power Over Ethernet (PoE) functionality allows you transmit all the information and power over only one cable.

NDI is a registered trademark of Newtek, Inc.

Power over Ethernet

The PTC-285NDI supports PoE for easy installation. No need to find local power outlets or hire an electrician to install outlets wherever you want to mount your camera. Simply run a single CAT 6 cable to power your PTC-285NDI.

NDI® Virtual Input

Present PTC-285NDI as the video input source to video streaming applications Skype, GoToMeeting, WebEx, Zoom, and more.

Build a reliable SRT live streaming workflow with all Datavideo products

Datavideo’s wide range of encoders, cameras, and hand-carry switchers are fully supported by SRT and dvCloud. Datavideo encoders and dvCloud provide reliable streams over unreliable networks. By using a Datavideo encoder and dvCloud together, you can utilize SRT (instead of RTMP) on the initial problematic connection or “First Mile.” After your video stream reaches dvCloud, you can depend on dvCloud’s reliable, high-bandwidth network to deliver the stream to your favorite destinations, like Facebook and YouTube.

Video format/Resolution 2160p60/59.94/50/30/29.97/25
1080p60/59.94/50/30/29.97/25
1080i60/59.94/50
720p60/59.94/50
*2160p60/59.94/50 YUV 4:2:2
Image Sensor 1/2.8″ CMOS
Effective Pixels (approx.) 8.51Mega Pixels
S/N Ratio ≥55dB
Min. Illumination 0.5 Lux @ (F1.8, AGC ON)
Electronic Shutter 1/30s ~ 1/10000s
Zoom Ratio 12x Optical Zoom, 16x Digital Zoom
Gamma Control Off / Normal
Iris Control Auto / Manual
Digital Noise Reductions 3D
On-Screen Display (OSD) English/Simplified Chinese/Traditional Chinese
White Balance Auto, Indoor, Outdoor, OnePush, Manual, VAR
AGC / Gain Control Yes
Mirror / Flip Image Yes
Focus Mode Auto/Manual
Panning / Tilting Range Pan: 300°
Tilt: +130° to -15°
Panning / Tilting Speed Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s
Preset 255 Position
Focal Length 12x, f = 4.4mm ~ 52.8mm, F1.8 ~ F2.6
Field of View (Horizontal, Wide) 80°
Image Compensation Back light compensation
Video Output HDMI 2.0 x1
3G-SDI x1
10/100/1000M RJ45 x1
Audio Input 3.5 mm x1 (mic in/line in)
switch from Web UI
Tally LED Yes
Lens Filter N/A
Control Protocol Pelco-D, Pelco-P,
VISCA, VISCA over IP,
DVIP
NDI
Remote Control Interface IR
Web UI
RS-422
DVIP
NDI
Video Compression Format H.264/H.265/MJPEG
Audio Compression Format AAC
Audio Bitrate 96Kbps, 128Kbps, 256Kbps
HD IP Interface —
Streaming Protocols TCP/IP, HTTP, RTSP, RTMP(S), SRT, ONVIF, DHCP, Multicast
First Stream Supported Resolution 3840×2160
1920×1080
1280×720
1024×576
960×540
640×480
640×360
Second Stream Supported Resolution 720×480
640×360
480×270
320×240
Video Bitrate 32Kbps ~ 50Mbps (Single Stream)
Video Bitrate Mode VBR, CBR
Encoding Frame rate 50Hz: 1-50fps
60Hz: 1-60fps
POE IEEE 802.3at
F/W Update Via Web UI or USB 2.0
IR Control Yes
Camera Control Unit Showcast 100, RMC-180 series/RMC-300 series/PTZ View Assist APP
Tripod Mount 1/4-20 UNC
Optional Accessories WM-1/ WM-10/ WM-11
Colour White
Dimension (LxWxH) 173 (W) x 219 (H) x 189.08 (D)
Weight 2.6 kg
Operating Temp. Range 0~40 °C
Power DC 12V 12W
