Blackmagic URSA Cine EVF

OVERVIEW

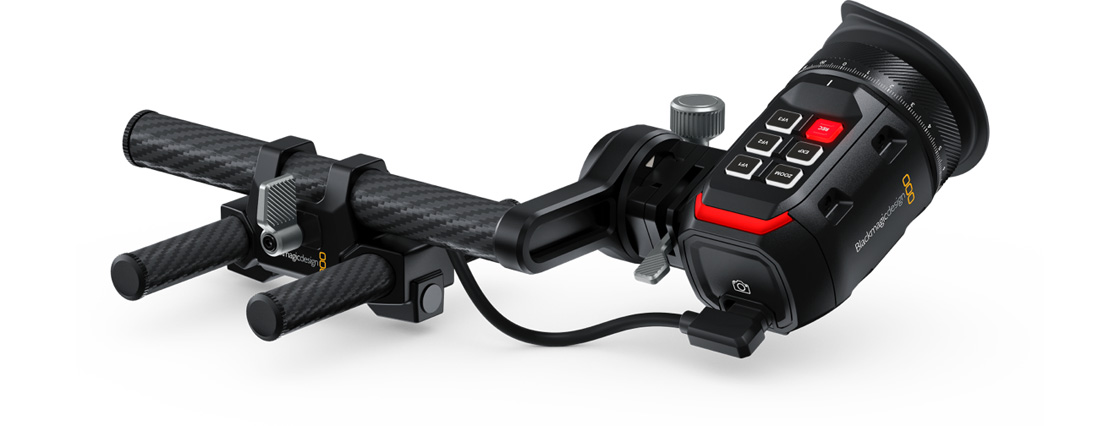

High quality viewfinder for use with the Blackmagic URSA Cine 12K with full HD OLED display, precision glass optics, adjustable diopter and function buttons. Quick set up with versatile mounting and single USB-C cable for power and video.

INCLUDED IN BOX
1x Blackmagic URSA Cine EVF

1x Blackmagic URSA Cine EVF Rotating bracket with 19mm carbon fibre rod

1x Blackmagic URSA Cine EVF Bracket rod mount

1x Blackmagic URSA Cine EVF Extension

2x short carbon fibre 15mm rods

1x short right angle to right angle USB Viewfinder cable

1x short right angle to straight USB Viewfinder cable

1x long right angle to straight USB Viewfinder cable

1x Rubber eyecup

1x Fabric eye chamois

1x Blackmagic Sticker

1x Welcome wallet with QR code for software download

About The Blackmagic URSA Cine EVF
High quality viewfinder for use with the Blackmagic URSA Cine 12K with full HD OLED display, precision glass optics, adjustable diopter and function buttons. Quick set up with versatile mounting and single USB-C cable for power and video.

Operating System Mac 13.0 Ventura, Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements Powered over USB-C.
Environmental Specifications Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing

Display Resolution Full 1920 x 1080
Frame Rates Up to 60fps
Display Type OLED
Display Pixels 6.22 Million Pixels
Color Precision SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Focus 4 Element diopter.
Diopter Range-5 to +5
Controls Record button, Exposure Button, Zoom Button, 3 x assignable VF buttons.
Overlays Built in overlay display processor and top mounted buttons.
Eyepiece Can be tilted vertically and extended for left or right eye use.
Tally LED tally light.
Mounting Options Fully adjustable EVF mounting kit included. Blackmagic URSA Cine Handle is required for mounting to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras. Blackmagic URSA Cine EVF Extension compatible with standard extended viewfinder supports.
Metadata Support Displays and sends camera data and settings over USB to Blackmagic URSA Cine and Blackmagic PYXIS 6K cameras.
