OVERVIEW
The new AtomOS 11 is here, offering a faster and cleaner experience with more features than ever before. With this update, users will have access to a variety of new codecs, including 6K ProRes RAW, ProRes, DNxHD, and H.265, all at no extra cost. Additionally, those subscribing to Classic and Premium Atomos Cloud Services will now be able to record and upload high bitrate 4K files to the Cloud. Other improvements include enhanced monitoring with the EL ZONE System exposure and ARRI false colour, as well as new features like RecordAssist, PlaybackAssist, TimeLapse, and RemoteView.
The Shogun, known for its 7-inch super-bright screen and versatile connectivity options, has also received a boost with the new AtomOS 11 update. With Wi-Fi 6 and GigE network connectivity, long-range wireless sync and control, and third-party sync and app control, the Shogun offers all the connectivity a filmmaker could need. Its ultra-bright screen, ideal for checking HDR footage, can now also display RAW video from a wide range of cameras. And with its solid aluminium frame and anti-rotational mount points, the Shogun is built to withstand the rigors of on-set use.
SUMMARY
Screen Size: 7 Inch
Resolution: 4K
NITs: 2000
INCLUDED IN BOX
1x Shogun – 7inch Monitor
1 x USB C PD to 2.1mm DC power lead
1x Master Caddy III
2 x Wi-Fi antennas
1 x AirGlu Antenna
Antenna tips
1 3.5mm to 3.5mm audio sync cable
1x QuickStart Guide
About The Atomos Shogun – 7inch Monitor
AtomOS 11.03.00 Firmware Update available HERE
New Features & Improvements:
Atomos Segment Pro
Various bug fixes & stability improvements
UP TO ELEVEN
The original Shogun gave filmmakers what they had been asking for. All the Ninja’s talents, with a bigger, 7-inch super-bright screen and both HDMI and SDI I/O. Today’s Shogun is bolstered by new abilities from AtomOS 11, massive connectivity from integrated networking, more codecs, and compatibility with almost every camera.Shogun is the Atomos dream writ large.
ALL THE CONNECTIVITY YOU’LL EVER NEED
Solid Internet – Network connectivity with Wi-Fi 6 and GigE.
Wireless Sync – Long-range robust wireless sync and control with AirGlu RF.
Third-party Sync – Third-party sync and app control with Bluetooth AirGlu BT.
USB-C Port – For future updates.
More Power Options – Multiple power options with NP battery slot and separate 2.1mm locking jack DC input.
SDI Out – Separate SDI Out for comprehensive SDI<>HDMI cross-conversion.

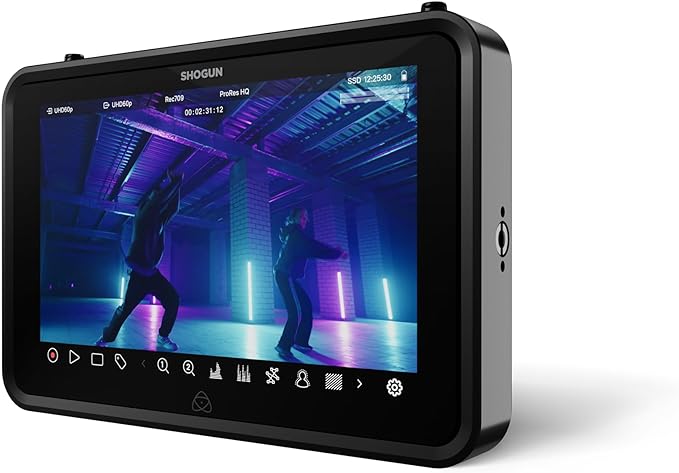

SUPER BRIGHT SCREEN
Shogun’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.
ENHANCE YOUR CAMERA
The new Shogun has an ultra-bright, 7-inch HDR screen that’s easily visible outdoors. Capture RAW video from a vast range of DSLR, mirrorless and cinematic cameras with either SDI or HDMI connections. It’s packed with on-screen tools for focus, exposure, customer LUTs and metadata. Shogun takes care of your workflow while you focus on creative ideas.
Improve your shots through accurate framing and check your exposure and focus on a clear, bright screen. We work with all popular camera manufacturers to support the widest range of cameras. Not just for recording uncompressed video via HDMI or SDI but working with RAW formats and being able to stop/start trigger the camera’s own recording.
READY TO RAW
Shogun can capture RAW inputs up to 6K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats.
With a versatile 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun now has a new operating system and user interface. The screen is designed for outdoor usability, with a generous 2000nits, viewable even in direct sunlight. You can also adjust the screen for optimum performance in dimly lit locations.
FEATURE-PACKED, EVEN MORE VERSATILE
You can pair the new Shogun with a huge range of video, DSLR, mirrorless or cinematic cameras. Choose from a selection of industry-standard recording formats, including Apple ProRes. Pick the best frame size, frame rate, and codec for your project and delivery requirements. Shogun also allows you to record HDMI RAW inputs up to 6K at 30fps while simultaneously looping out standard YCC video via HDMI to non-RAW compatible devices.
ANY CAMERA, ANY FORMAT. ANYWHERE.
Pair the Shogun equally well with smaller cameras as part of a minimal setup, or with full-size camera rigs on large-scale productions. Shogun is made from precision materials and crafted for maximum durability with a solid aluminium frame. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Shogun includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.
ON SET. IN POST. GET CREATIVE.
Stage clever cinematic shots and save time in post-production with the powerful Onion Skin and Frame Grab features built-in as standard. Onion skin overlay simplifies stop-motion and jump or match cuts. Capturing frame grabs live on set saves time making thumbnails and acts as a quick reference to share with the team.
A COMPLETE MONITORING TOOLBOX

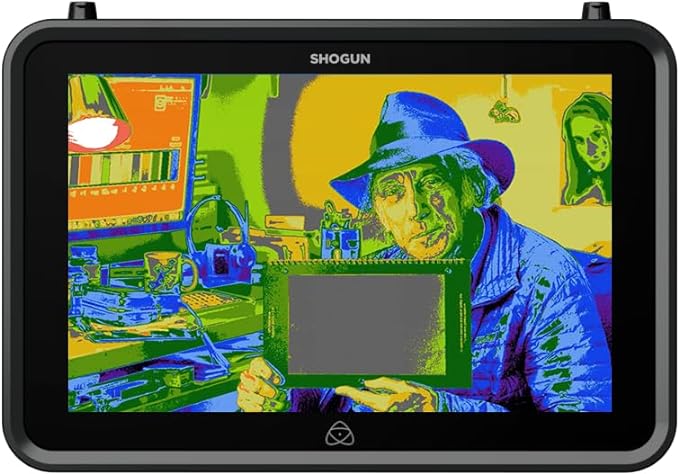

Shogun includes comprehensive monitoring tools to help you get the perfect composition and exposure in every shot. Easy-to-use but powerful tools include waveform, focus peaking, multiple false colour tools, zoom controls, custom LUTs, and frame guides. Shogun’s new AtomOS 11 software is simple to update with new features and releases – as well as support for new cameras.
A HIGHLY SECURE MOUNT
From individuals to large-scale cinema productions, Shogun has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun to remain in place at all times.

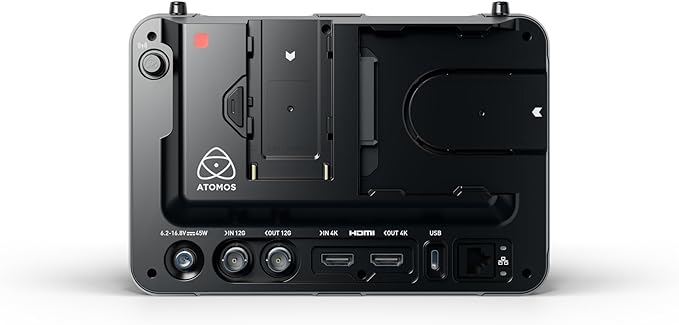

CONNECTIVITY. WE’VE GOT YOU COVERED.
Shogun’s comprehensive range of inputs and outputs lets you capture the highest quality video from the widest range of cameras, and connects you to the cloud, for new, ultra-speedy and productive workflows.
ADD VALUE TO YOUR PRODUCTION
To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera is able to output video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Shogun can record more colour information and immediately add value to your production with your existing camera rig.
Additionally, if you’re shooting Log footage, the ability to bypass internal compression will offer the best possible dynamic range. Shogun is designed to maximize the quality of your videos and allow you to extend every aspect of your creative vision. Shogun also includes 12G-SDI input, the standard on high-end cinema cameras, including the Sony FX series, Panasonic EVA1, and Canon EOS C series. The robustness and utility of SDI is critical for the productions that rely on it. SDI RAW provides the ultimate experience in terms of flexibility and quality, which makes Shogun the ideal choice for big budget filmmakers around the world.
Physical Specifications
Dimensions (W x H x D mm) 198mm x 133mm x 40mm / 7,8″ x 5,2″ x 1,57″
Weight 730g / 1.6lb (excluding batteries)
Mount points Top: 1 x 1/4″20 or 3/8″ with anti rotational points
Bottom: 1 x 1/4″20 or 3/8″ with anti rotational points
Right: 1 x 1/4″20 or 3/8″ with anti rotational points
Environmental
Ambient operating temperature Up to 40 Degrees Celsius
Construction & Control
Body Aluminium alloy chassis with ABS Polycarbonate back plate
Cooling Actively controlled fan and heat sink
Multi-function button Power / lock Screen
Tally light Yes
Power
Input voltage 6.2V to 16.8V
Compatible batteries 1 x NP-F / L-Series
Battery voltage 7.2V
DC in connector Locking DC Jack (5.5mm OD & 2.1mm ID)
D-Tap Via optional D-Tap to DC cable
Display
Touchscreen SuperAtom IPS panel (capacitive touch)
Size 7”
Resolution 1920 x 1200
PPI 325
Bit depth 10-Bit (8+2 FRC)
Backlight Type Edge lit
Brightness (cdm2 / Nits) 2000nit +/-10%
Aspect ratio 16:9 Image Display
Color Gamut Rec.709
Calibration support ATOMOS Calibrator with Calibrite ColorChecker Display Pro
or ColorChecker Display Plus
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3
ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1
RED LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10)
HLG, Nikon N-Log, Z CAM Z-Log2, Olympus OM-Log400 / Flat, Leica L-Log
Gamut BT2020, DCI P3, PDCI P3 65, Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut
ARRI Alexa Wide Gamut Rec709, JVC LS300, Red DragonColor / DragonColor2
RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format
3D LUT Output Loop out
3DLUT 50/50 Yes
Monitoring Modes Native / 709 / HLG / PQ / 3D LUT
HDR output Conversion HLG / PQ
Color Management
Calibration ATOMOS Calibrator with Calibrite ColorChecker Display Pro
or ColorChecker Display Plus
Display controls Backlight, Lift, Gamma, Gain
AtomHDR Built in Technical Log to HDR EOTF
3D luts Display, monitor and output, Record, Load via SSD
Legalize Input
Video Input
HDMI 1 x HDMI 2.0
SDI 1 x 12G SDI
Bit Depth 8 / 10 bit
Video Chroma Subsampling YCbCr 420 & 422
HDR Yes with HDMI Auto detection
File Naming
Standard S/S/T & Rolling
Via SDI
Video Output
HDMI 1 x HDMI 2.0
SDI loop out 1 x 12G SDI
HDR Yes with Auto detection
Audio In/Out
Audio Quality 24-Bit / 48kHz
Audio Codec PCM
HDMI 8ch 24Bit, input dependent
SDI 12ch 24Bit, input dependent
Analogue Audio in 3.5mm Jack – 5v power
Analogue Audio Out 3.5mm Jack
Headphone out 3.5mm Jack
Network
Ethernet 1GbE RJ45
Wi-fi WI-FI 6
Wireless RF AirGlu™ SYNC Time code Network
Cellular Connect to Hot Spot via Wi-Fi
Web Streaming
RTMP Yes
RTMP / S Yes
Video Signal Conversion
HDMI to SDI Yes
SDI to HDMI Yes
Timecode / Sync
SDI Embedded Embedded
HDMI Embedded Embedded
Time of day Yes
Wireless SYNC AirGlu SYNC Time code Network Server or Client
RF Network range 300m
RF Frequency Region dependant
Number of Channels 12 RF Channels per Region
Number of RF clients 100 clients
Bluetooth Network Range 10-15m (line of sight)
Number of BT clients 2 clients
Resolution & Frame Rates Maximum (Record, Monitor & Playback)
6k RAW up to 6Kp30 Via HDMI & 6Kp30 SDI
4k RAW up to 4Kp60 via HDMI / SDI
3.5k Anamorphic RAW up to 3.5Kp60 via HDMI
2k RAW up to 2Kp240 via SDI
4k DCI up to 4Kp60
4k UHD up to 4Kp60
2K DCI 2046 x 1080 up to 2Kp60
FHD 1920 x 1080 Progressive up to 1080p120
FHD 1920 x 1080 PsF Pull down
FHD 1920 x 1080 Interlaced 1080i50 / 1080i60
1280 x 720p 60p
Recording CODEC
Apple ProRes RAW up to 12bit 6Kp30
ProRes HQ / 422 / LT up to 4Kp60
Avid DNxHD up to 1080p60
Avid DNxHR up to 4Kp60
h.265 up to 4Kp60 (MOV container)
Primary Codec + Proxy Record ProRes RAW, ProRes, DNx with H.265
Pre Roll 8 secs HD / 4 secs 4k ProRes & DNx
Timelapse Yes
Gang control SYNC record control
Playback
Playlist Yes, Selected, Favourites or Combined
Loop Playback Yes, with custom in and out points
Apple ProRes RAW Yes, recorded clips
ProRes HQ / 422 / LT Yes with linear PCM
Avid DNx HD Yes with linear PCM
Avid DNx HR Yes with linear PCM
H.265 Recorded clips
Monitoring
SDR Native, 709, LUT
HDR HLG, PQ Rec2020
De-Interlace Selectable mode
Supported media
Interface SATA 3 – MasterCaddy / SSDmini / CFast II (via adapter)
Master Caddy I No
Master Caddy II Yes
Master Caddy III Yes
SSDmini Yes
CFast II Yes via AtomX CF adapter
File System exFAT
On screen tools
Waveform 3 sizes
RGB parade 3 sizes
Vector scope Small / large
1 x Zoom Tap to zoom
2 x Zoom Tap to zoom
Focus peaking Coloured and slider for threshold
Zebra Customisable
EL ZONE SYSTEM Colourized Exposure
Atomos False color With IRE scale
Isolate color channel Blue only
Cine Frame Guides Preset and Custom
Social Frame guides Preset and Custom
Safe areas SMPTE frame size – Action and Safe
Grid markers 9 grid
Frame Grab and Onion skin overlay Lossless PNG 1920 x 1080
Anamorphic desqueeze Display 1.25x, 1.33x, 1.5x, 1.8x and 2x
Display Flip vertical
Onboard Signal Processing
RAW to Video loop out Yes, conversion from Larger Resolutions to 4k
4K UHD downscale for HD Yes, menu enabled
DCI Crop Yes, menu enabled
I > P 2:2 and 3:2
PSF > P 2:2 and 3:2
Remote control
Bluetooth LE via AtomControl App
External Device Control
Serial 2.5mm Jack Remote to USB – Z CAM
Supported Applications
XML – Cut, Tag & Edit Final Cut Pro
Apple ProRes Raw Apple Final Cut Pro, Adobe Premiere, Avid Media Composer
Grass Valley Edius, ASSIMILATE SCRATCH
Apple ProRes All Applications with support for Apple ProRes in .MOV wrapper
Avid DNx All Applications with support for Avid DNX in .MOV wrapper
Warranty Standard 1 Year
Brand New OS
New AtomOS 11 – faster, cleaner, with more features
More Codecs Included
6K ProRes RAW, ProRes, DNxHD & H.265 – all for free
4K H.265 Recording*
Record & upload high bitrate 4K files to the Cloud
*Available when subscribing to Classic and Premium Atomos Cloud Services
Improved Monitoring
With EL ZONE System exposure and ARRI false colour
RecordAssist
Set a time for your recording to start
PlaybackAssist
Set a time for your Shogun to play out files or sequences
TimeLapse
Set up time-lapse recording and control it from your Shogun
Segment Pro**
Automatically split files when they reach a set size/duration
** Coming late 2023
RemoteView
Share live camera views from your Shogun’s screen over the public internet
Wi-Fi 6
Fast, stable connection to the internet
Atomos Care360
Premium extended warranty that covers unforeseen damage
