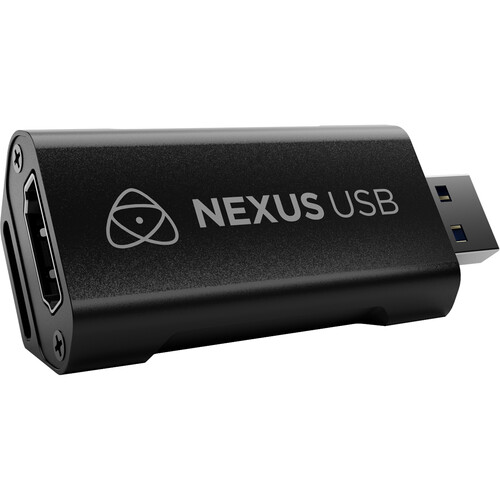

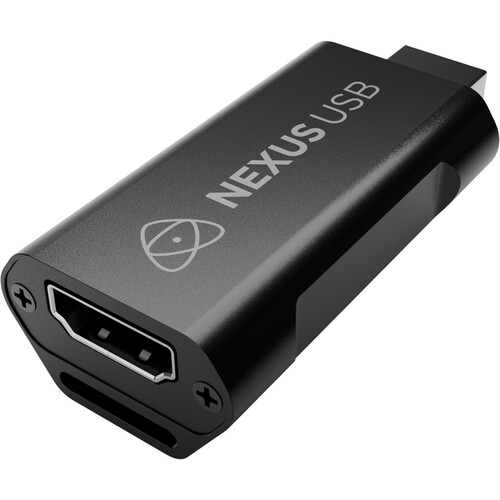

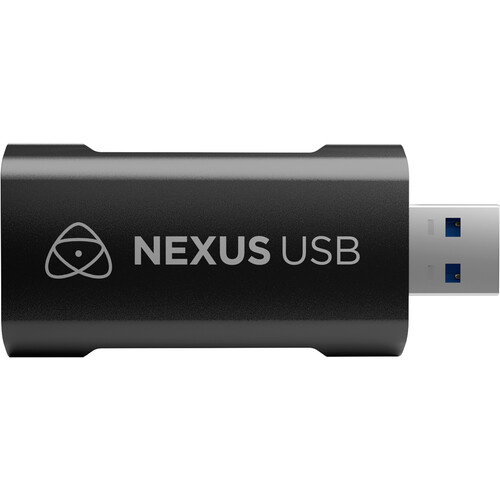

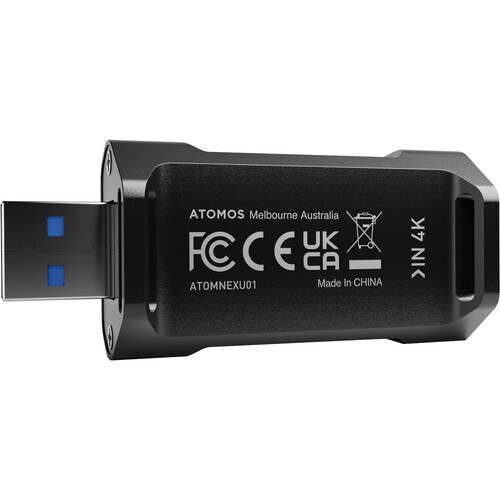

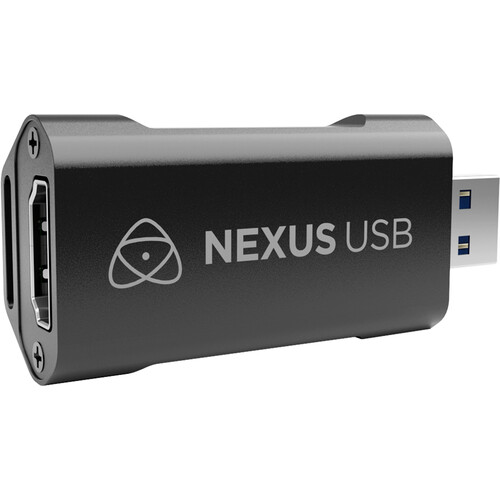

Atomos Nexus HDMI To USB Converter

41.67

ATOMNEXU01

Compare

OVERVIEW
The Atomos Nexus is a convenient HDMI to USB converter that allows you to easily stream high-quality video content. It supports resolutions up to 4K and frame rates up to 60p, making it suitable for a variety of sources. With simple operation, you can connect your camera, console, or Atomos monitor recorder and start streaming to your preferred platform. The Nexus automatically converts your input to the widely supported USB Video Class standard, making it compatible with popular platforms like Skype, MS Teams, Zoom, and more.

In order to stream successfully, you will need to use an additional application such as OBS, StreamLabs OBS, Wirecast, or X-Split on your computer. This versatile converter is a universally supported tool for streaming, making it a valuable addition for content creators and professionals alike.

INCLUDED IN BOX
1x Atomos Nexus HDMI to USB Converter
1x USB-A to USB-C Adapter Cable
1x User manual

About The Atomos Nexus HDMI To USB Converter
Convert & Stream

Atomos Nexus, our HDMI to USB converter that allows you to take 4K (up to 30p), HD (up to 60p) or 720p (up to 60p) sources and output the same resolution and frame rate up to a maximum of 1080p60 ready for connection to the USB input on a computer and out to your choice of streaming platform.

Simple operation

Simply connect the HDMI output of your favorite camera, console or Atomos monitor recorder and you’re ready to go LIVE! The Nexus automatically converts your input to the widely supported USB Video Class (UVC) standard.

Universally supported

Supported by any CDN/conferencing platform that supports UVC: Skype, MS Teams, Zoom, Twitch, YouTube & many more.

Streaming Requirements

To successfully stream, your computer requires an addtional application such as OBS, StreamLabs OBS, Wirecast or X-Split.

HDMI input up to 4Kp30/1080p60
USB output resolution up to 1080p60 (YUV.JPEG)
Colour depth Supports 8/10/12-bit deep colour
HDMI Support Certified AWG26 HDMI cables up to 15 meters
Software support Popular acquisition software on Windows, Android & Mac OS
USB support Conforms to USB Video and UVC standard
Conforms to USB Audio UAC standard (L- PCM format)
Power No external power required
Maximum working current 0.4A / 5V DC
Operating temperature range -10 to +55 °C.
Dimensions (L x W x H) 64 x 28 x 13mm.
Weight 21.4g.
SYSTEM REQUIREMENTS.
PC i5-3400 or above
NB i7-3537U 2.0GHZ or above.
Graphics card PC NVIDIA GT630 or above.
NB NVIDIA GT735M or above
RAM memory 4G RAM
