Sachtler Ace XL Mk II Flowtech75 GS System

OVERVIEW
Introducing the Sachtler 1016GS Ace XL Mk II flowtech75 GS System, the perfect combination of precision and dedication. This system features the Ace XL tripod with flowtech75, supporting payloads up to 8kg (17.6lbs). With nine steps of counterbalance and Sachtler drag with 3 + 0 steps, you can achieve finesse in every shot. The illuminated level bubble ensures straight shots in any location.

But thats not all, the flowtech tripod boasts unique quick release brakes and a hinge lock for low and high shots. The tripod bowl also has three accessory mounts, allowing you to add extra equipment like a Magic Arm. And when its time to move on, the strong magnetic leg locks make transportation a breeze.

With the Ace XL system, you can be prepared for any opportunity that comes your way. Weighing only 5.5kg (12.1lbs), this system is lightweight and compact, making it perfect for any journey. Its 104mm (4.1in) balance plate sliding range and detachable bowl make it easy to position and adjust your camera, while the Sachtler drag ensures smooth movement in any temperature.

But the real game changer is the flowtech75 tripod, included in the Ace XL system. This 2-stage carbon fibre tripod has the worlds fastest deployment, with quick release brakes and a versatile hinge lock for ultra-low and high shots. Its ergonomic design makes it comfortable to carry, and the three 3/8″ accessory mounting points on the tripod bowl allow you to add extra equipment to your rig.

Designed with precision-engineered drag segments and rigorously tested materials, the Ace XL system is built to earn its place on your journey. Its no wonder that professionals trust Sachtler for their support systems. So whether you are in the urban jungle or the great outdoors, let Ace be your support system for every shot.

SUMMARY
Tripod Head Type: Fluid Head
Max Payload: 8kg
Leg Section: 2 Section
Spreader Type: Ground
Head Fitting: 75mm
Material: Carbon Fibre
INCLUDED IN BOX
Ace XL Mk II Fluid Head (S2170-0001)
Flowtech75 GS (4587)
Carry Handle (S2051-1061)
Padded Bag 75 (9116)

About The Sachtler Ace XL Mk II Flowtech75 GS System
Are you ready?

With Ace, precision meets dedication. Achieve finesse in every shot with fast counterbalance, and smooth drag adjustments. Lightweight and compact, with consistent performance, Ace is along for the journey. From urban jungles to the call of the wild, be ready for every opportunity that comes your way.

With Ace in your corner, stability and smoothness comes with every shot. It simplifies your setup with camera plate markers, stepped counterbalance and quick pan and tilt adjustments. Ace XL supports camera rigs weighing up to 8kg (17.6lbs), with nine steps of balance to quickly match your payload. A 104mm (4.1in) balance plate sliding range helps position accessorised cameras centrally and Sachtler drag gives smooth movement in any temperature. Ace XL also includes an illuminated level bubble to keep things straight in any location and a removable threaded stud for when you want to swap to a slider. Weighing 5.5kg (12.1lbs), this Ace XL system is light in weight but not in features, so go further, climb higher and capture that winning shot unplanned or in the heat of the moment.

The System Ace XL flowtech75 GS includes the world’s fastest tripod, to revolutionise the way you work. The 2-stage carbon fibre flowtech® tripod has unique quick release brakes at the top which can be deployed and adjusted in an instant, and a versatile hinge lock mechanism that allows it to be deployed without a spreader for ultra-low and high shots. Its ergonomic design makes the tripod comfortable to carry, on your shoulder or with the carry handle. With three 3/8” accessory mounting points on the tripod bowl you can add something extra to your rig like a Magic Arm and when you are ready to move on, the legs are held together by a magnetic lock for transportation. The detachable ground spreader provides maximum stability wherever you are. And when the road is long, Ace comes with a carry case for protection on the go.

Ace is built to earn its place on your journey. Designed with precision-engineered drag segments and rigorously tested materials, consistent performance is a given. That’s why Sachtler is trusted by professionals like you. Whatever path you choose to travel, Ace is your support system.

Payload 0 – 8 kg
0 – 17.6 lbs
Counterbalance Steps 9 + 0
Drag settings 3 + 0
Weight 5.5 kg
12.1 lb
Height range with spreader: 57 – 174 cm
without spreader: 41 – 169 cm
with spreader: 22.4 – 68.5 in
without spreader: 16.1 – 66.5 in
Transport length 84 cm
33.1 in
Illumination yes
Pan bar type Pan bar Ace #S2150-1200
Number of pan bars 1
Bowl size 75 mm with integrated flat base
Tripod Stages 2
Tripod material Carbon Fibre
Sliding range 104 mm
4.1 in
Camera plate Interface Slide in
Tilt Range 90° to -75°
Temperature range -30° to +60°C
-22° to +140°F
Packaging dimensions 97 x 26 x 25; 8.4 kg
38.2 x 10.2 x 9.8 in; 18.5 lb
Warranty 1-Year manufacturer warranty extendable to 2 Years with product registration

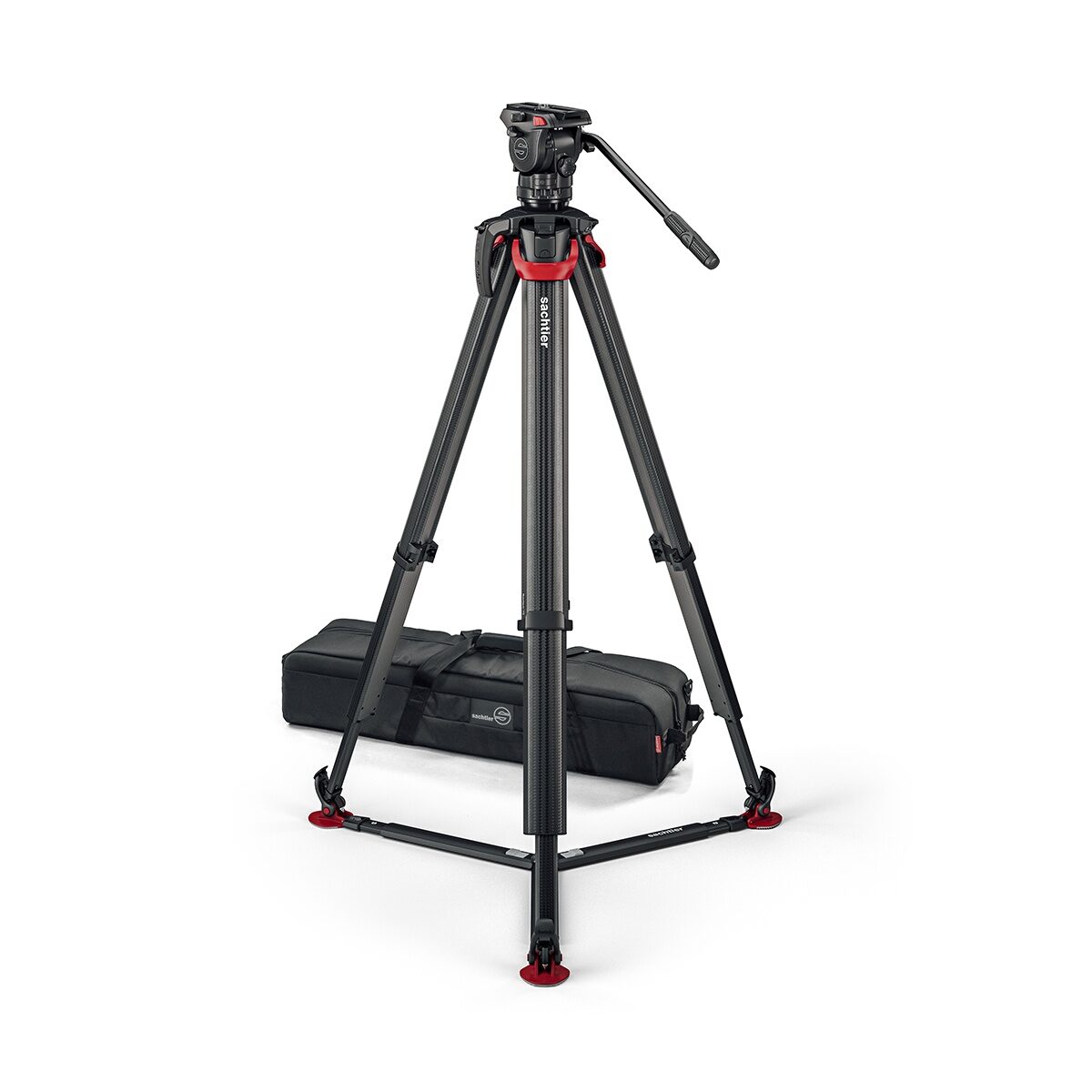

Ace XL system with flowtech75 tripod
Supports payloads up to 8kg (17.6lbs)
Nine steps of counterbalance
Sachtler drag with 3 + 0 steps
Illuminated level bubble
Flowtech tripod with unique quick release breaks and hinge lock for low/high shots
Accessory mounts on tripod bowl
Strong magnetic leg locks for transportation
Bag, ground spreader and carry handle included)
